Hammond Manufacturing

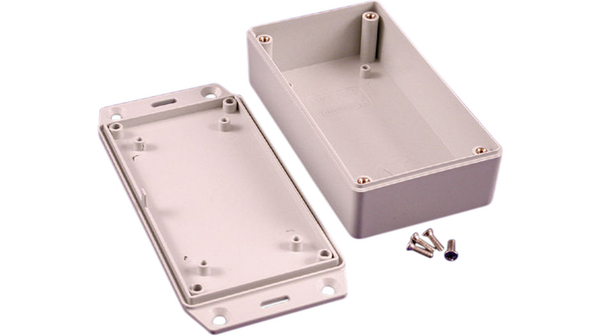

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 评分 | IP54 |
| 面积（长x宽） | 11.2" (72cm) |
| 产品特点 | Flame Retardant, PCB Supports |
| 重量 | 0.14 lb (63.5g) |
| 颜色 | Gray |
| 标准包装 | 1 |
| 材质 | Plastic, ABS |
| 身高 | 1.289" (32.74mm) |
| 尺寸/尺寸 | 4.481" L x 2.493" W (113.82mm x 63.32mm) |
| 集装箱类型 | Box with Mounting Flange |
| 设计 | Cover Included |
| 材料阻燃等级 | UL94 V-0 |
| 厚度 | 0.079" (2.01mm) |
| 装运信息 | Shipped from Digi-Key |
| 外宽 | 2.5 in |
| 外部高度 | 1.1 in |
| 产品 | Electronics Enclosures |
| 产品种类 | Enclosures, Boxes, & Cases |
| IP等级 | IP 54 |
| 可燃性等级 | UL 94 V-0 |
| 类型 | Flanged Cover Panel |
| RoHS | RoHS Compliant |
| 外部深度 | 4.4 in |
| 外壳类型 | :Multipurpose |
| 外壳材质 | :Acrylonitrile Butadiene Styrene (ABS) |
| 主体颜色 | :Grey |
| External Height - Imperial | :4.45" |
| External Height - Metric | :113mm |
| External Width - Imperial | :2.48" |
| External Width - Metric | :63mm |
| External Depth - Imperial | :1.22" |
| External Depth - Metric | :31mm |
| NEMA号 | :12K |
| SVHC | :No SVHC (20-Jun-2013) |
| 机身厚度 | :63mm |
| Weight (kg) | 0.075 |
| Tariff No. | 39269097 |
| RoHS指令 | RoHS Compliant Part |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
