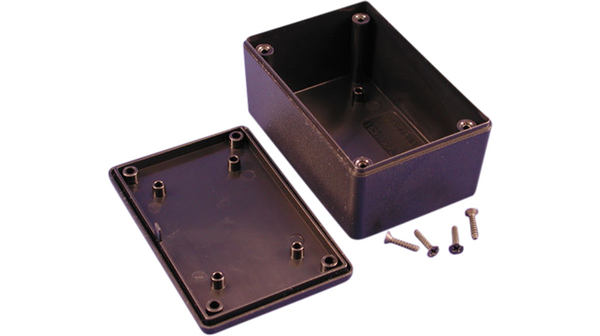

图片仅供参考,产品以实物为准
| 规格书 |
 1591XXLS Drawing |
| 文档 |
1591XXLS.dwg 1591XXL.(igs,stp) |
| Rohs | Lead free / RoHS Compliant |
| 三维模型 | 1591XXL.(igs,stp) |
| 标准包装 | 1 |
| Container 型 | Box |
| 大小/尺寸 | 3.427 L x 2.279 W (87.05mm x 57.89mm) |
| 高度 | 1.604 (40.75mm) |
| 面积（长x宽） | 7.81 (50.4cm) |
| 设计 | Cover Included |
| 材料 | Plastic, Non Specified |
| 颜色 | Black |
| 厚度 | 0.079 (2.01mm) |
| 特点 | PCB Supports |
| 等级 | IP54 |
| 材料可燃性等级 | - |
| 航运信息 | Shipped from Digi-Key |
| 重量 | 0.1 lb (45.36g) |
| 评分 | IP54 |
| 面积（长x宽） | 7.81" (50.4cm) |
| 产品特点 | PCB Supports |
| 重量 | 0.1 lb (45.36g) |
| 颜色 | Black |
| 标准包装 | 1 |
| 材质 | Plastic, Non Specified |
| 身高 | 1.604" (40.75mm) |
| 尺寸/尺寸 | 3.427" L x 2.279" W (87.05mm x 57.89mm) |
| 集装箱类型 | Box |
| 设计 | Cover Included |
| 厚度 | 0.079" (2.01mm) |
| 装运信息 | Shipped from Digi-Key |
| 外宽 | 2.2 in |
| 外部高度 | 1.4 in |
| 产品 | Electronics Enclosures |
| 产品种类 | Enclosures, Boxes, & Cases |
| IP等级 | IP 54 |
| 可燃性等级 | UL 94 V-0 |
| RoHS | RoHS Compliant |
| 外部深度 | 3.4 in |
| 外壳类型 | :Multipurpose |
| 外壳材质 | :Plastic |
| 主体颜色 | :Black |
| External Height - Imperial | :1.68" |
| External Height - Metric | :42.75mm |
| External Width - Imperial | :3.43" |
| External Width - Metric | :87.07mm |
| External Depth - Imperial | :2.28" |
| External Depth - Metric | :57.87mm |
| SVHC | :No SVHC (20-Jun-2013) |
| Weight (kg) | 0.05 |
| Tariff No. | 39269097 |
| Brand/Series | 1591XX"S"Series |
| 配置 | Desktop |
| 外形尺寸 | 3.400x2.200x1.520In. |
| IPRating | IP54 |
| PrimaryType | ElectronicEnclosure |
| 类型 | Box-Lid |
| RoHS指令 | RoHS Compliant Part |
| Dimension Z | 39mm |
| Dimension Y | 87mm |
| Dimension X | 57mm |
| Multiplicity | 1 |
| Enclosure material | ABS |
| Gross weight | 0.05 kg |
| Body colour | black |
| spg | 10 |
| 密封 | IP54 |
| Enclosure series | 1591 |
| Collective package [pcs] | 10 |
| 机箱类型 | multipurpose |
