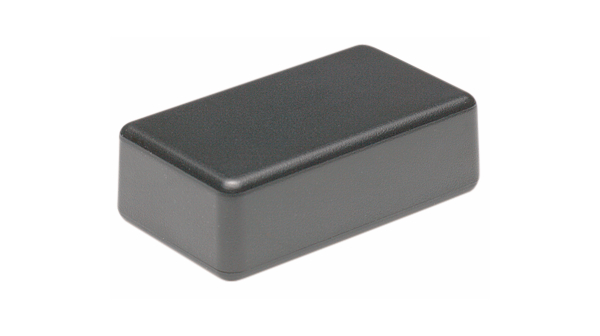

Hammond Manufacturing
所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 评分 | IP54 |
| 面积（长x宽） | 3.88" (25.0cm) |
| 产品特点 | PCB Supports |
| 重量 | 0.05 lb (22.68g) |
| 颜色 | Gray |
| 标准包装 | 1 |
| 材质 | Plastic, ABS |
| 身高 | 0.787" (19.99mm) |
| 尺寸/尺寸 | 1.969" L x 1.969" W (50.00mm x 50.00mm) |
| 集装箱类型 | Box with Mounting Flange |
| 设计 | Cover Included |
| 厚度 | 0.079" (2.01mm) |
| 装运信息 | Shipped from Digi-Key |
| 阀体材质 | ABS |
| 颜色 | Grey |
| 外部尺寸 | 50 x 50 x 20mm |
| 外部高度 | 20 mm |
| 外部长度 | 50 mm |
| 外宽 | 50 mm |
| RoHS指令 | Compliant |
| 外宽 | 1.97 in |
| 外部高度 | 0.79 in |
| 产品 | Electronics Enclosures |
| 产品种类 | Enclosures, Boxes, & Cases |
| IP等级 | IP 54 |
| 类型 | Flanged Cover Panel |
| RoHS | RoHS Compliant |
| 外部深度 | 1.97 in |
| 外壳类型 | :Handheld |
| 外壳材质 | :Acrylonitrile Butadiene Styrene (ABS) |
| 主体颜色 | :Grey |
| External Height - Imperial | :0.79" |
| External Height - Metric | :20mm |
| External Width - Imperial | :1.97" |
| External Width - Metric | :50mm |
| External Depth - Imperial | :1.97" |
| External Depth - Metric | :50mm |
| NEMA号 | :12K |
| SVHC | :No SVHC (20-Jun-2013) |
| Weight (kg) | 0.02 |
| Tariff No. | 85381000 |
| Brand/Series | 1551Series |
| 配置 | PanelMount |
| 外形尺寸 | 1.970x1.970x0.790In. |
| Dimension Z | 20mm |
| Dimension Y | 50mm |
| Dimension X | 50mm |
| Multiplicity | 1 |
| Enclosure material | ABS |
| Gross weight | 0.02 kg |
| Body colour | grey |
| spg | 10 |
| 密封 | IP54 |
| Enclosure series | 1551 |
| Collective package [pcs] | 10 |
| 机箱类型 | with fixing lugs |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
