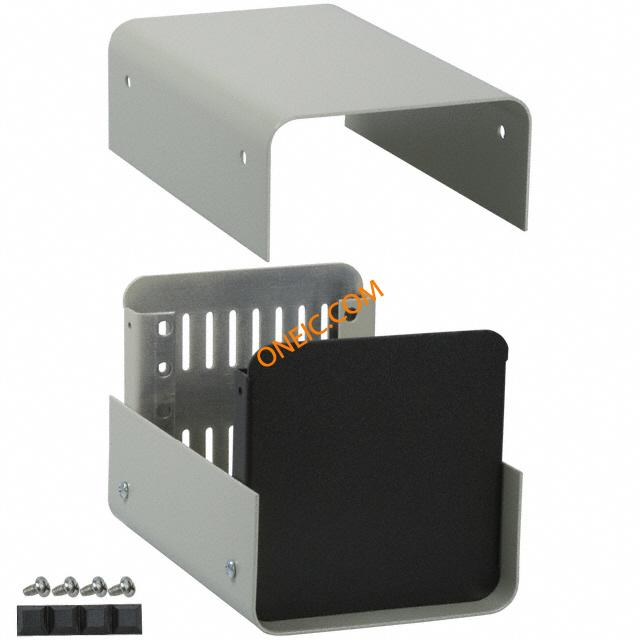

Hammond Manufacturing
所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 面积（长x宽） | 24.0" (155cm) |
| 产品特点 | Vented Panels |
| 颜色 | White, Off |
| 标准包装 | 5 |
| 材质 | Metal, Steel |
| 身高 | 4.000" (101.60mm) |
| 尺寸/尺寸 | 6.000" L x 4.000" W (152.40mm x 101.60mm) |
| 集装箱类型 | Box |
| 设计 | Split Sides and End Panel(s) |
| 厚度 | 18 Gauge |
| 其他名称 | HM287 |
| 装运信息 | Shipped from Digi-Key |
| RoHS指令 | Compliant |
| 外宽 | 4 in |
| 外部高度 | 4 in |
| 产品 | Instrument Cases |
| 产品种类 | Enclosures, Boxes, & Cases |
| 类型 | Bench Top |
| RoHS | RoHS Compliant |
| 外部深度 | 6 in |
| 外壳类型 | :Instrument |
| 外壳材质 | :Steel |
| 主体颜色 | :Grey |
| External Height - Imperial | :3.98" |
| External Height - Metric | :101mm |
| External Width - Imperial | :3.98" |
| External Width - Metric | :101mm |
| External Depth - Imperial | :5.98" |
| External Depth - Metric | :152mm |
| IP等级 | :- |
| NEMA号 | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Weight (kg) | 0.7 |
| Tariff No. | 85381000 |
| Brand/Series | 1401Series |
| 配置 | Desktop |
| 深度 | 4in. |
| 外形尺寸 | 6.000x4.000x4.000In. |
| 表面处理 | ContempraGreyPowderPaint |
| Material,Body | Steel(TopandBottom),Aluminum(Panel) |
| MountingType | PanelMount |
| ScrewType | PhillipsHead |
| Thickness,Material | 18ga. |
| 宽度 | 6in. |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
