Hamlin
所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 欧盟RoHS指令 | Compliant |
| 引脚数 | 2 |
| 子类别 | Specialized Sensor |
| 交货期 | 56 Days |
| 联系配置 | :SPST-NO |
| Switching Voltage Max | :250VDC |
| Switching Power Max | :50W |
| Contact Current Max | :2.5A |
| 接触电阻最大 | :100mohm |
| Switch Case | :Glass |
| Operation Ampere Turns Range | :22AT to 43AT |
| Switch Mounting | :(Not Available) |
| 阀体材质 | :Glass |
| Contact Current AC Max | :1A |
| Contact Current DC Max | :1A |
| 接触电阻 | :100mohm |

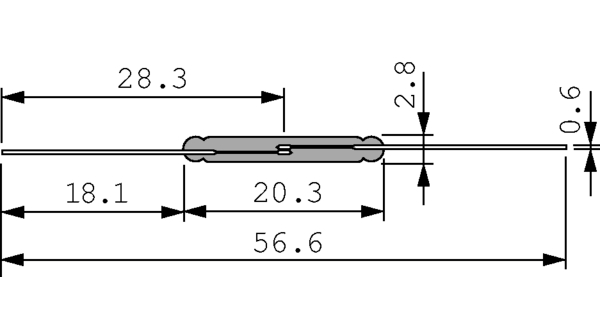

| 外部深度 | :2.84mm |
| External Length / Height | :20.32mm |
| 身高 | :20.32mm |
| 绝缘电阻 | :10000Mohm |
| Operating Temperature Max | :125°C |
| Operating Temperature Min | :-20°C |
| 系列 | :MRPR |
| Switching Current AC Max | :1A |
| Switching Current DC Max | :1A |
| Switching Voltage AC / DC Max | :250VDC |
| 终端类型 | :Axial Leaded |
| Weight (kg) | 0.028 |
| Tariff No. | 85365080 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
