Hamlin

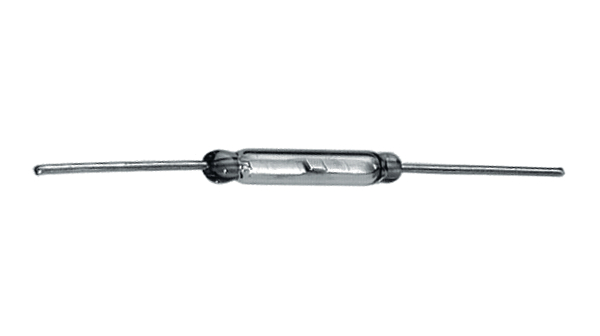

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品长度 | 40.38 |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 125 |
| 产品直径 | 1.8 |
| 安装 | Through Hole |
| 触点形式 | Form A |
| Maximum Operation Time | 0.6 |
| Device Sensitivity Range | 10 to 25 |
| Maximum Current Carry | 0.8 |
| 最大额定电流 | 0.5 |
| 最大额定功率 | 10 |
| 最大直流额定电压 | 200 |
| Glass Length | 12.7 |
| 交换机配置 | N.O. |
| Maximum Release Time | 0.2 |
| 最低工作温度 | -40 |
| Maximum Contact Resistance | 100 |
| 卖备选方案 | MDSR-7(NRC) |
| 子类别 | Switch Reed |
| 交货期 | 42 Days |
| 联系配置 | :SPST-NO |
| Switching Voltage Max | :200VDC |
| Switching Power Max | :10W |
| Contact Current Max | :800mA |
| 接触电阻最大 | :100mohm |
| Switch Case | :Glass |
| Operation Ampere Turns Range | :10AT to 25AT |
| Switch Mounting | :(Not Available) |
| Operating Temperature Max | :125°C |
| Operating Temperature Min | :-40°C |
| 终端类型 | :Axial Leaded |
| Weight (kg) | 0.005 |
| Tariff No. | 85365080 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
