Fluke
所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 电池类型 | 9V, AA |
| 电缆探测深度 | 2.5m |
| 显示器类型 | LCD |
| 包括 | Case, Receiver, Transmitter |
| 最大频率 | 60Hz |
| 最高工作温度 | +40°C |
| 最大安全工作电压 | 400V |
| 仪表类型 | Cable Tracer |
| 最小频率 | 0 Hz |
| 最低工作温度 | 0°C |
| 最低安全工作电压 | 12V |

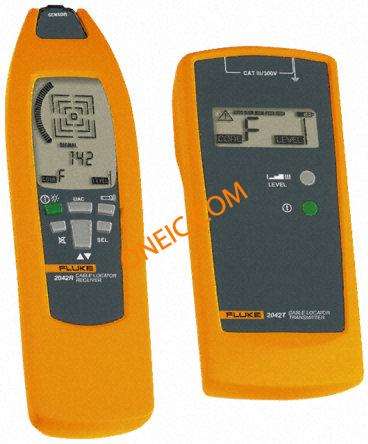

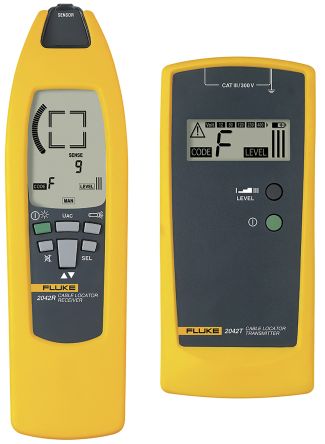

| 型号号码 | Fluke 2042 |
| 电源 | Battery |
| 安全等级 | CAT III 300 V |
| 安全类别等级 | CAT III |
| 安全类别电压 | 300V |
| Test Detector Type | :Cable |
| Depth Measurement | :2.5m |
| SVHC | :No SVHC (20-Jun-2013) |
| Metal Types | :Copper |
| Operating Temperature Max | :40°C |
| Operating Temperature Min | :0°C |
| 工作温度范围 | :0°C to +40°C |
| Voltage Measuring Range AC | :12V, 50V, 120V, 230V, 400V |
| Weight (kg) | 2.6 |
| Tariff No. | 90318038 |
| Tester type | non-contact voltage detector, wire localizer |
| Detection | voltage at depth up to 40cm, discontinuities and short circuits in conductors, conductors at depth up to 2,5m, cables in walls |
| Transmitter dimensions | 190 x 85 x 50mm |
| Transmitter weight | 400g |
| Frequency range of detectable voltage | 0...60Hz |
| Multiplicity | 1 |
| 电源 | 1 battery 1,5V LR61 (receiver), 6 batteries 1,5V LR6 (AA) (transmitter) |
| Output voltage range | 12...400V AC |
| Gross weight | 2.84 kg |
| Receiver dimensions | 250 x 65 x 45mm |
| Pollution degree | 2 |
| Operating temperature | 0...40°C |
| Receiver weight | 270g |
| Conform to the norm | EN61010 300V CAT III |
| 显示 | LCD |
| Optional equipment | FLK-2042T - additional transmitter |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
