Fluke

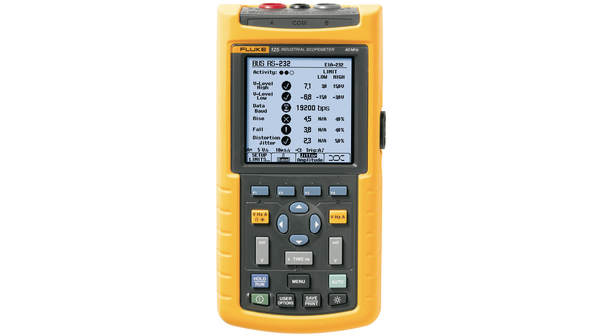

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 带宽 | 40MHz |
| 电池寿命 | 7 h |
| 电池类型 | Rechargeable NiMH |
| 外形尺寸 | 232 x 115 x 50mm |
| 显示器类型 | Monochrome |
| 身高 | 50mm |
| 长度 | 232mm |
| 最高工作温度 | +50°C |
| 最大时基 | 1min/div |
| 最大垂直灵敏度 | 500V/div |
| 最低工作温度 | 0°C |
| 最低时基 | 10ns/div |
| 最小垂直灵敏度度 | 5mV/div |
| 型号号码 | Fluke 125 |
| 通道数 | 2 |
| 示波器类型 | Handheld |
| 电源 | Battery, Mains |
| 记录长度 | 512points/ch |
| 上升时间 | 8.75ns |
| RS232接口 | Yes |
| 安全等级 | CAT III 600 V |
| 安全类别等级 | CAT lll |
| 安全类别电压 | 600V |
| 采样率随机 | 2.5 Gsps |
| 屏幕尺寸 | 10.2cm |
| 系列 | 120 |
| USB接口 | Yes |
| 垂直分辨率 | 8 bit |
| 重量 | 1.2kg |
| 宽度 | 115mm |
| F resolution | 1 |
| Input: Impedance F | 12 |
| VAC resolution | 100 |
| Ohm resolution | 0.1 |
| 内存 | 1 |
| Time basis | 10 ns...60 s/div |
| Measuring function | Continuity tester |
| Input coupling | AC |
| Interfaces | RS232 |
| 显示 | Mono |
| Channel analog | 2 |
| VDC resolution | 100 |
| Sample rate, single-shot | 0.025 |
| Electrical supply | Battery pack |
| Vertical resolution | 8 |
| F max | 500 |
| VAC max | 1250 |
| Hz resolution | 0.01 |
| Protection rating | IP 51 |
| Dimensions L x W x H | 232 x 115 x 50 mm |
| Vertical sensitivity/div | 5 mV...500 V/div |
| VDC max | 1250 |
| Ohm max | 30 |
| Delivery with | 1 Probes/channel |
| Sample rate, repetitive | 1.25 |
| Input impedance Ohm | 1 |
| Safety standard EN 61010 | CAT III 600 V |
| Hz max | 70 |
