fci sa
所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Board to Board |
| 间距 | 1 mm |
| 行数 | 2 |
| 触点数 | 41 |
| 性别 | RCP |
| 触点电镀 | GXT Over Nickel |
| 端接方式 | Solder |
| 标准包装 | Rail / Tube |
| 封装 | Tube |

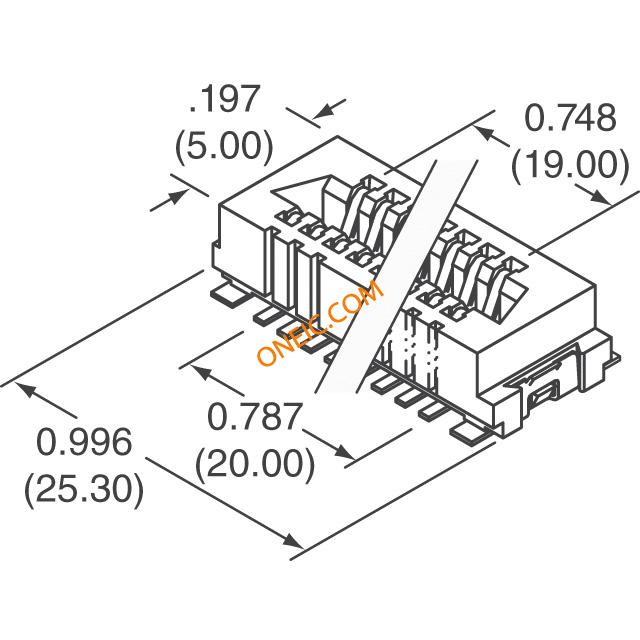

| 产品长度 | 25.3 |
| 欧盟RoHS指令 | Compliant |
| 产品厚度 | 5.59 |
| 安装 | Surface Mount |
| 身体上的取向 | Straight |
| 最大额定电压 | 500V |
| 产品高度 | 3.28 |
| 外壳材料 | Liquid Crystal Polymer |
| 间距 | 1 |
| 外壳颜色 | Natural |
| Maximum Contact Resistance | 30 |
| 最大额定电流 | 1/Contact |
| 触点材料 | Copper Alloy |
| 单位包 | 24 |
| 最小起订量 | 480 |
| 产品特点 | Board Guide, Solder Retention |
| 安装类型 | Surface Mount |
| 连接器类型 | Receptacle, Outer Shroud Contacts |
| 触点表面涂层 | Gold or Gold, GXT™ |
| 板上方高度 | 0.129" (3.29mm) |
| 啮合堆叠高度 | 4.15mm, 4.5mm, 5mm, 5.5mm, 6mm, 7mm, 7.52mm |
| Contact Finish Thickness | 15µin (0.38µm) |
| 位置数 | 41 |
| RoHS指令 | Lead free / RoHS Compliant |
| 工厂包装数量 | 24 |
| 安装方式 | Vertical |
| 产品种类 | Board to Board & Mezzanine Connectors |
| 额定电流 | 1 A |
| 额定电压 | 500 V |
| 系列 | Conan |
| 端接类型 | SMD |
| 位置/触点数 | 41 |
| 产品类型 | Receptacles |
| RoHS | RoHS Compliant |
| 节距 | :1mm |
| No. of Contacts | :41 |
| Row Pitch | :2.59mm |
| No. of Rows | :2 |
| 接触端子 | :Surface Mount Vertical |
| SVHC | :No SVHC (20-Jun-2013) |
| 接触电阻 | :30mohm |
| External Length / Height | :3.28mm |
| 可燃性等级 | :UL94V-0 |
| 身高 | :3.28mm |
| 绝缘电阻 | :1000Mohm |
| 绝缘材料 | :Polyester |
| 引线间距 | :1mm |
| No. of Mating Cycles | :30 |
| Operating Temperature Max | :130°C |
| Operating Temperature Min | :-55°C |
| 耐压 | :500V |
| Weight (kg) | 0.000418 |
| Tariff No. | 85369010 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
