texas instruments

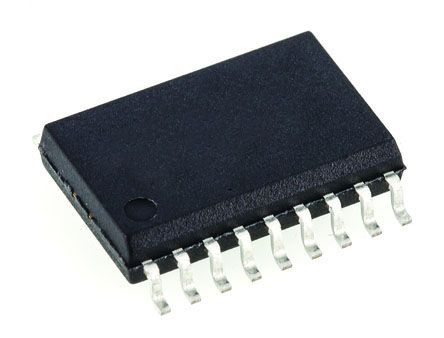

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 18SOIC |
| 配置 | Octal Common Emitter |
| 类型 | NPN |
| 最大集电极发射极电压 | 50 V |
| 峰值直流集电极电流 | 0.5 A |
| 最大集电极发射极饱和电压 | 1.1@250uA@100mA|1.3@350uA@200mA|1.6@500uA@350mA V |
| 安装 | Surface Mount |
| 标准包装 | Rail / Tube |
| 供应商封装形式 | SOIC |
| 标准包装名称 | SOIC |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 85 |
| 最低工作温度 | -40 |
| Package Height | 2.35(Max) |
| 封装 | Tube |
| Maximum Continuous DC Collector Current | 0.5 |
| 最大集电极发射极饱和电压 | 1.1@250uA@100mA|1.3@350uA@200mA|1... |
| 每个芯片的元件数 | 8 |
| Package Width | 7.6(Max) |
| PCB | 18 |
| Package Length | 11.75(Max) |
| 最大集电极发射极电压 | 50 |
| 引脚数 | 18 |
| 铅形状 | Gull-wing |
| 电流 - 集电极（ Ic）（最大） | 500mA |
| 晶体管类型 | 8 NPN Darlington |
| 安装类型 | Surface Mount |
| 下的Vce饱和度（最大） Ib，Ic条件 | 1.6V @ 500µA, 350mA |
| 电压 - 集电极发射极击穿（最大） | 50V |
| 供应商设备封装 | 18-SOIC |
| 封装/外壳 | 18-SOIC (0.295", 7.50mm Width) |
| RoHS指令 | Lead free / RoHS Compliant |
| 集电极电流（ DC）（最大值） | 0.5 A |
| 集电极 - 发射极电压 | 50 V |
| 工作温度范围 | -65C to 150C |
| 包装类型 | SOIC |
| 极性 | NPN |
| 元件数 | 8 |
| 工作温度分类 | Military |
| 弧度硬化 | No |
| 集电极 - 发射极饱和电压 | 1.1 V |
| 删除 | Compliant |
| 集电极电流（DC ） | 0.5 A |
| 晶体管极性 | :NPN |
| Collector Emitter Voltage V(br)ceo | :50V |
| DC Collector Current | :500mA |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| Transistor Case Style | :SOIC |
| No. of Pins | :18 |
| MSL | :MSL 2 - 1 year |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :2803 |
| Current Ic Continuous a Max | :500mA |
| Device Marking | :ULN2803ADW |
| Module Configuration | :Eight |
| No. of Transistors | :8 |
| 工作温度范围 | :-40°C to +85°C |
| Weight (kg) | 0.03 |
| Tariff No. | 85412900 |
| 案例 | SO18-W |
| 输出电流 | 500mA |
| Integrated circuit type | driver |
| Gross weight | 1.02 g |
| 输出电压 | 50V |
| Number of channels | 8 |
| Multiplicity | 1 |
| Kind of integrated circuit | darlington |
| Collective package [pcs] | 400 |
| spg | 400 |
| Status | ACTIVE |
| Replaced By | |
| Temp (oC) | -40 to 85 |
| Package | Pins | SOIC (DW) | 18 |
| Package QTY | Carrier | 40 | TUBE |
| Iout/ch | 500 |
| Functional Diagram | |
| Iout_off | 50 |
| HiRel | |
| 切换电压 | 50 |
| Package Group | SOIC |
| Reference Design | |
| Drivers Per Package | 8 |
| Datasheet | SLRS049G |
| Input Compatibility | CMOS TTL |
| Vol@Lowest Spec Current | 900 |
| TI Design | |
| 延迟时间 | 130 |
| Rating | Catalog |
| 峰值输出电流 | 500 |
| 输出电压 | 50 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
