texas instruments

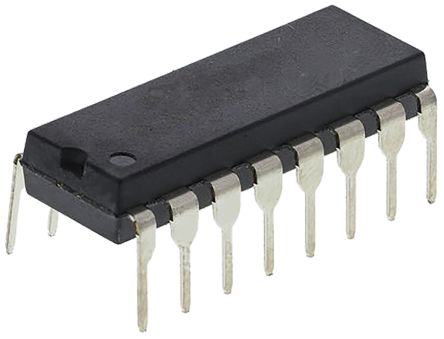

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 16PDIP |
| 类型 | Charge Controller |
| 电池类型 | Lead-Acid |
| 输出电流 | 2000(Min) mA |
| 工作温度 | -20 to 70 °C |
| 安装 | Through Hole |
| 标准包装 | Rail / Tube |
| 供应商封装形式 | PDIP |
| 标准包装名称 | PDIP |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 70 |
| Package Height | 5.08(Max) - 0.51(Min) |
| 输出电流 | 2000(Min) |
| 封装 | Tube |
| 最大工作电源电压 | 40 |
| Package Width | 6.6(Max) |
| PCB | 16 |
| Package Length | 19.69(Max) |
| 最低工作温度 | -20 |
| 引脚数 | 16 |
| 铅形状 | Through Hole |
| 功能 | Charge Management |
| 安装类型 | Through Hole |
| 供应商设备封装 | 16-PDIP |
| 化学电池 | Lead Acid |
| 封装/外壳 | 16-DIP (0.300", 7.62mm) |
| 电压 - 电源 | 4.2 V ~ 40 V |
| RoHS指令 | Lead free / RoHS Compliant |
| 外形尺寸 | 19.3 x 6.35 x 4.57mm |
| 身高 | 4.57mm |
| 长度 | 19.3mm |
| 最高工作温度 | +70 °C |
| 最大输出电流 | 40mA |
| 最低工作温度 | -20 °C |
| 最小输出电流 | 25mA |
| 包装类型 | PDIP |
| 宽度 | 6.35mm |
| 工厂包装数量 | 25 |
| 产品种类 | Battery Management |
| 系列 | UC3906 |
| 单位重量 | 0.037172 oz |
| 安装风格 | Through Hole |
| RoHS | RoHS Compliant |
| 工作温度范围 | -20C to 70C |
| 工作温度分类 | Commercial |
| 弧度硬化 | No |
| 工作电源电压（最大值） | 40 V |
| 输入电压 | :40V |
| 输出电压 | :2V |
| No. of Pins | :16 |
| Operating Temperature Min | :0°C |
| Operating Temperature Max | :70°C |
| MSL | :MSL 1 - Unlimited |
| Leaded Process Compatible | :Yes |
| Weight (kg) | 0.002 |
| Tariff No. | 85411000 |
| Charge Current Max | :2A |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :3906 |
| Battery Management Function | :Charger |
| Input Voltage Max | :40V |
| 工作温度范围 | :0°C to +70°C |
| Supply Voltage Max | :40V |
| Supply Voltage Min | :5V |
| 端接类型 | :Through Hole |
| 案例 | DIP16 |
| Multiplicity | 1 |
| 功率 | 1W |
| 输出电流 | 80mA |
| Integrated circuit type | DC-DC converter |
| Gross weight | 2.26 g |
| 频率 | 1MHz |
| Voltage max | 40V |
| Kind of integrated circuit | PWM controller |
| Collective package [pcs] | 25 |
| spg | 25 |
| Status | ACTIVE |
| Replaced By | |
| Temp (oC) | -20 to 70 |
| Package | Pins | PDIP (N) | 16 |
| Device Marking | View |
| Package QTY | Carrier | 25 | TUBE |
| Battery Charge Voltage | |
| 控制接口 | Standalone |
| New Flag | |
| Functional Diagram | |
| Vin | 40 |
| Cell Chemistry | |
| # Series Cells | |
| Datasheet | SLUS186C |
| 充电电流 | >2 |
| Reference Design | |
| Charging Control Topology | Linear |
| 特殊功能 | |
| HiRel | Y |
| TI Design |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
