texas instruments

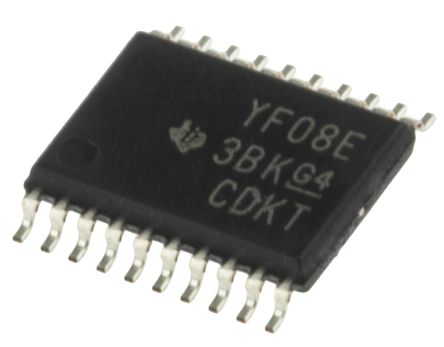

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 20TSSOP |
| 逻辑功能 | Voltage Level Translator |
| 输出类型 | Open Drain |
| 工作电源电压 | 1.8|1.8/2.5|1.8/3.3|1.8/5|2.5/1.8|2.5|2.5/3.3|2.5/5|3.3/1.8|3.3/2.5|3.3/5 V |
| 标准包装 | Tape & Reel |
| Absolute Propagation Delay Time | 312 |
| 安装 | Surface Mount |
| Package Width | 4.5(Max) |
| PCB | 20 |
| 典型工作电源电压 | 1.8|1.8/2.5|1.8/3.3|1.8/5|2.5/1.8... |
| 欧盟RoHS指令 | Compliant |
| 最低工作温度 | -40 |
| 供应商封装形式 | TSSOP |
| 标准包装名称 | TSSOP |
| 最高工作温度 | 85 |
| Maximum High Level Output Current | -50 |
| Package Length | 6.6(Max) |
| 最低工作电源电压 | 1.2/1.65 |
| 引脚数 | 20 |
| Maximum Quiescent Current | 0.003(Typ) |
| Package Height | 1.05(Max) |
| Maximum Low Level Output Current | 50 |
| 封装 | Tape and Reel |
| 最大工作电源电压 | 3.6/5.5 |
| 铅形状 | Gull-wing |
| 位数 | 8 |
| 安装类型 | Surface Mount |
| 差分 - 输入 | No/No |
| 输出/通道数目 | 1 |
| 供应商设备封装 | 20-TSSOP |
| 工作温度 | -40°C ~ 85°C |
| 通道数 | 8 |
| 输入类型 | Voltage |
| 数据传输速率 | 60Mbps |
| 电压 - 电源 | 1.2 V ~ 3.6 V, 1.65 V ~ 5.5 V |
| 传输延迟（最大） | 4.8ns |
| 其他名称 | 296-23011-2 |
| 封装/外壳 | 20-TSSOP (0.173", 4.40mm Width) |
| RoHS指令 | Lead free / RoHS Compliant |
| 包装类型 | TSSOP |
| 工作温度（最大） | 85C |
| 工作温度（最小值） | -40C |
| 工作温度分类 | Industrial |
| 腹肌。 | 312 ns |
| 弧度硬化 | No |
| 工作电源电压（最小值） | 1.2/1.65 V |
| 工作电源电压（最大值） | 3.6/5.5 V |
| 高电平输出电流 | -50 mA |
| 低电平输出电流 | 50 mA |
| 静态电流 | 3 uA |
| No. of Inputs | :8 |
| 输出电流 | :620µA |
| 传播延迟 | :3.5ns |
| Supply Voltage Min | :1.2V |
| Supply Voltage Max | :3.6V |
| Logic Case Style | :TSSOP |
| No. of Pins | :20 |
| 逻辑类型 | :Voltage Level Translator |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (16-Dec-2013) |
| Fall Time tf | :4.6ns |
| Logic IC Base Number | :0108 |
| Logic IC Function | :8bit Bidirectional Voltage Level Translator |
| 工作温度范围 | :-40°C to +85°C |
| 上升时间 | :6.3ns |
| 电源电流 | :8µA |
| Supply Voltage Range | :1.2V to 3.6V, 1.65V to 5.5V |
| 端接类型 | :SMD |
| Weight (kg) | 0.0001 |
| Tariff No. | 85423990 |
| Status | ACTIVE |
| Temp (oC) | -40 to 85 |
| Package | Pins | TSSOP (PW) | 20 |
| Device Marking | View |
| Package QTY | Carrier | 2000 | LARGE T&R |
| New Flag | |
| VCCA | 3.6 |
| VCCB | 5.5 |
| Technology Family | |
| tpd @ Nom Voltage | |
| Bits | 8 |
| Functional Diagram | fbd_sces642c.gif |
| Package Group | TSSOP VQFN BGA MICROSTAR JUNIOR |
| Reference Design | Y |
| VCC | |
| Datasheet | SCES642C |
| Max Drive | 50 |
| F @ Nom Voltage | |
| ICC @ Nom Voltage | |
| Schmitt Trigger | No |
| Rating | Catalog |
| Output Drive (IOL/IOH) | |
| TI Design | Y |
| 电压 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
