texas instruments

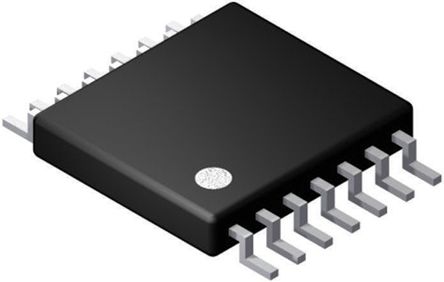

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 14HTSSOP EP |
| 工作温度 | -40 to 85 °C |
| 标准包装 | Rail / Tube |
| 供应商封装形式 | HTSSOP EP |
| 标准包装名称 | TSSOP |
| 欧盟RoHS指令 | Compliant |
| Package Height | 1.05(Max) |
| 安装 | Surface Mount |
| Package Width | 4.5(Max) |
| PCB | 14 |
| Package Length | 5.1(Max) |
| 引脚数 | 14 |
| 铅形状 | Gull-wing |
| 安装类型 | Surface Mount |
| 供应商设备封装 | 14-HTSSOP |
| 封装 | Tube |
| 应用范围 | USB, Peripherals |
| 电流 - 电源 | 85µA |
| 电压 - 电源 | 2.7 V ~ 5.5 V |
| 其他名称 | 296-12566-5 |
| 封装/外壳 | 14-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| RoHS指令 | Lead free / RoHS Compliant |
| 工厂包装数量 | 90 |
| 产品 | PCI Power Management |
| 产品种类 | Hot Swap Voltage Controllers |
| 工作温度范围 | - 40 C to + 85 C |
| 系列 | TPS2150 |
| 单位重量 | 0.002046 oz |
| 功率耗散 | 2266.7 mW |
| 电源电压 - 最大 | 5.5 V |
| 安装风格 | SMD/SMT |
| 封装/外壳 | HTSSOP-14 |
| 电源电压 - 最小 | 2.7 V |
| 电源电流 | 85 uA |
| RoHS | RoHS Compliant |
| 包装类型 | HTSSOP EP |
| 工作温度（最大） | 85C |
| 工作温度（最小值） | -40C |
| 表壳长度 | 5 mm |
| 筛选等级 | Industrial |
| 表壳厚度 | 1.15 mm |
| 弧度硬化 | No |
| Primary Input Voltage | :6V |
| No. of Outputs | :1 |
| 输出电压 | :3.3V |
| 输出电流 | :600mA |
| Voltage Regulator Case Style | :HTSSOP |
| No. of Pins | :14 |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| MSL | :MSL 2 - 1 year |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :2150 |
| Input Voltage Max | :5.5V |
| Output Current Max | :150mA |
| Supply Voltage Max | :5.5V |
| Supply Voltage Min | :2.7V |
| Switch Output Current Isw Max | :150mA |
| 端接类型 | :SMD |
| Weight (kg) | 0.0002 |
| Tariff No. | 85423190 |
| Status | ACTIVE |
| Temp (oC) | -40 to 85 |
| Package | Pins | HTSSOP (PWP) | 14 |
| Device Marking | View |
| Package QTY | Carrier | 90 | TUBE |
| New Flag | |
| Functional Diagram | |
| Package Group | HTSSOP |
| HiRel | |
| Enable | |
| Current Limit Accuracy @ 1A | |
| 开关次数 | |
| 电流限制 | |
| Reference Design | |
| Continuous Current | |
| Current Limit Topology | |
| Datasheet | SLVS399A |
| USB Switch rDS(on) | |
| rDS(on) per FET | |
| Rating | |
| TI Design | |
| Vin | 5.5 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
