texas instruments
所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Emulator Tool |
| 标准包装 | Boxed |
| 产品种类 | Emulators / Simulators |
| RoHS | No |
| 产品 | JTAG Emulators |
| 工具用于评估 | TMS320C28xx, TMS320C54xx, TMS320C55xx, TMS320C674x, MS320C66x, ARM9, ARM Cortex A8/A9/M3/M4/R4 |
| 适用于 | CCSTUDIO3 |

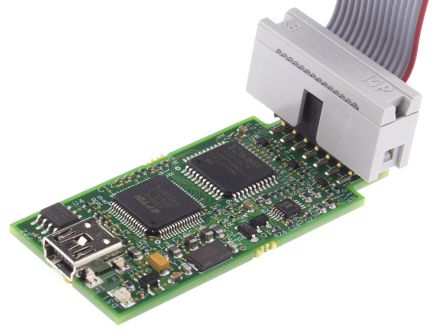

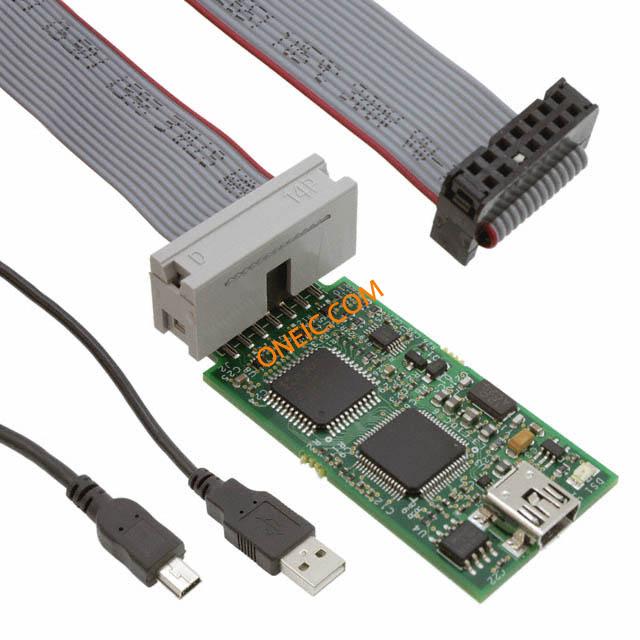

| 描述/功能 | XDS100v2 USB JTAG emulator (14-pin TI connector) |
| 接口类型 | USB |
| 工作电源电压 | 1.8 V to 3.3 V |
| 工厂包装数量 | 1 |
| 欧盟RoHS指令 | RoHS Not Applicable |
| 配用/相关产品 | TI DSPs and JTAG Microcontrollers |
| 内容 | Emulation Module |
| RoHS指令 | Contains lead / RoHS non-compliant |
| Silicon Family Name | :- |
| 核心架构 | :MSP430 |
| Core Sub-Architecture | :MSP430 |
| IC Product Type | :USB JTAG Emulator |
| 套件包含 | :- |
| 产品特点 | :USB Bus Powered, Supports USB1.x & USB2.0, Compatible with +1.8V to +3.3V Processors |
| SVHC | :No SVHC (16-Dec-2013) |
| Weight (kg) | 0.3 |
| Tariff No. | 85423190 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
