Texas Instruments

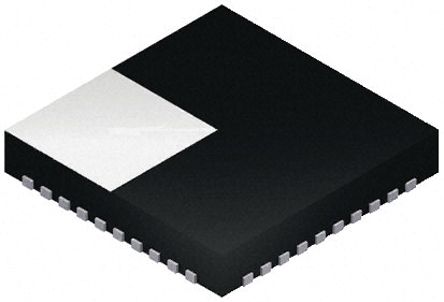

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| ADC的数量 | 2 |
| DAC的数量 | 2 |
| ADC/DAC Resolution | 24 |
| 安装 | Surface Mount |
| 采样速率 | 96 |
| Package Width | 5 |
| PCB | 40 |
| 筛选等级 | Industrial |
| 类型 | PCM |
| 典型工作电源电压 | 1.8|3.3|3.6 |
| 欧盟RoHS指令 | Compliant |
| 电源类型 | Analog|Digital |
| 最低工作温度 | -40 |
| 供应商封装形式 | WQFN EP |
| 标准包装名称 | QFN |
| 最高工作温度 | 85 |
| 接口类型 | Serial (I2C) |
| Package Length | 5 |
| 最低工作电源电压 | 1.1|1.525|2.7 |
| 引脚数 | 40 |
| Package Height | 0.75 |
| 封装 | Tape and Reel |
| 最大工作电源电压 | 1.95|3.6|5.5 |
| 铅形状 | No Lead |
| 电压 - 电源，模拟2.8 V，3.3 V | 2.7 V ~ 3.6 V |
| 的通道ADC / DAC数 | 2 / 2 |
| 动态范围，标准ADC / DAC （ db）典型值 | 91 / 92 |
| 安装类型 | Surface Mount |
| 数据接口 | I²C, Serial |
| 分辨率（位） | 24 b |
| 标准包装 | 250 |
| Σ-Δ | Yes |
| 供应商设备封装 | 40-WQFN (5x5) |
| 工作温度 | -40°C ~ 85°C |
| S / N比，标准ADC / DAC （ db）典型值 | 92 / 96 |
| 电压 - 电源，数字1.65 V 〜 2 V | 1.525 V ~ 1.95 V |
| 封装/外壳 | 40-WFQFN Exposed Pad |
| RoHS指令 | Lead free / RoHS Compliant |
| 其他名称 | 296-32390-1 |
| 工厂包装数量 | 250 |
| 产品种类 | Interface - CODECs |
| RoHS | RoHS Compliant |
| 最低工作温度 | - 40 C |
| 分辨率 | 24 bit |
| 系列 | TLV320AIC3107 |
| 单位重量 | 0.001929 oz |
| 安装风格 | SMD/SMT |
| 封装/外壳 | WQFN-40 |
| 最高工作温度 | + 85 C |
| 转换速率 | 96 kSPs |
| 包装类型 | WQFN EP |
| 工作温度（最大） | 85C |
| 工作温度（最小值） | -40C |
| 采样速率 | 96 KSPS |
| ADC / DAC分辨率 | 24 b |
| 弧度硬化 | No |
| 工作电源电压（典型值） | 1.8/3.3/3.6 V |
| 工作电源电压（最小值） | 1.1/1.525/2.7 V |
| 工作电源电压（最大值） | 1.95/3.6/5.5 V |
| ADC的数量 | 2 |
| DAC的数量 | 2 |
| Audio CODEC Type | :Stereo |
| No. of ADCs | :2 |
| No. of DACs | :2 |
| No. of Input Channels | :7 |
| No. of Output Channels | :6 |
| Audio IC Case Style | :QFN |
| No. of Pins | :40 |
| ADC / DAC Resolution | :24bit |
| ADCs / DACs Signal to Noise Ratio | :97dB |
| 采样速率 | :96kSPS |
| IC Interface Type | :I2C |
| Supply Voltage Range | :2.7V to 3.6V, 1.525V to 1.95V, 1.1V to 3.6V |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| MSL | :MSL 2 - 1 year |
| SVHC | :No SVHC (20-Jun-2013) |
| ADC / DAC Type | :Stereo Audio |
| No. of ADC/DACs | :2/2 |
| 工作温度范围 | :-40°C to +85°C |
| Supply Voltage Max | :3.3V |
| Supply Voltage Min | :1.8V |
| 端接类型 | :SMD |
| Weight (kg) | 0.0001 |
| Tariff No. | 85423990 |
| Status | ACTIVE |
| Temp (oC) | -40 to 85 |
| Package | Pins | WQFN (RSB) | 40 |
| Device Marking | View |
| Package QTY | Carrier | 250 | SMALL T&R |
| Digital Audio Interface | L R I2S DSP TDM |
| Speaker Amp Type | Class-D |
| Functional Diagram | fbd_slos545d.gif |
| Ground-Centered Outputs | |
| THD+N ADC(Typ) | -88 |
| 功耗 | 14 |
| DAC SNR | 97 |
| # of Digital Audio Interfaces | 1 |
| # ADCs | 2 |
| DACs | 2 |
| ADC SNR | 92 |
| Package Group | DSBGA WQFN |
| Speaker Amp Output Power | 1 |
| Reference Design | |
| 控制接口 | I2C |
| Headphone Driver | Yes |
| Datasheet | SLOS545D |
| THD+N DAC(Typ) | -84 |
| Battery Powered | Battery Powered |
| # Inputs / # Outputs | 7 / 6 |
| Rating | Catalog |
| 附加功能 | Mono 1W Class-D 3D EQ Matrix Mixing PLL HS detect and LP low-impedance Bypass |
| TI Design | |
| Speaker Amp Outputs | 1 |
| Line Powered | |
| HP THD+N |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
