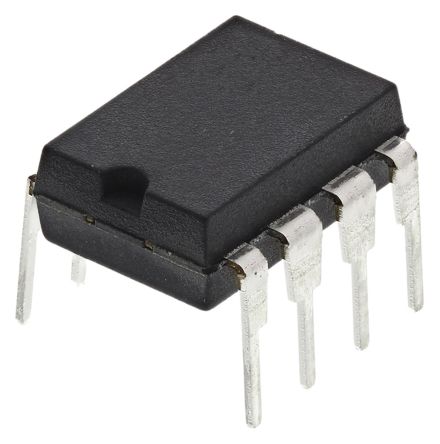

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 8PDIP |
| 每个芯片的通道数 | 2 |
| 类型 | General Purpose Amplifier |
| 典型增益带宽积 | 9.4 MHz |
| 典型的转换率 | 35@±5V V/us |
| 最大输入失调电压 | 3.5@±5V mV |
| 最大输入偏置电流 | 0.000175@±5V uA |
| 典型输入噪声电压密度 | 48@±5V nV/rtHz |
| 最低CMRR | 70 dB |
| 最小双电源电压 | ±2.25 V |
| 安装 | Through Hole |
| 工作温度 | 0 to 70 °C |
| 典型的同相输入噪声电流密度 | 0.0028@±5V pA/rtHz |
| 典型电压增益 | 106 dB |
| 标准包装 | Rail / Tube |
| 电流 - 输出/通道 | 48mA |
| 放大器类型 | J-FET |
| 安装类型 | Through Hole |
| 供应商设备封装 | 8-PDIP |
| 增益带宽积 | 10MHz |
| 封装 | Tube |
| 电流 - 电源 | 3.1mA |
| Voltage - Supply, Single/Dual (±) | 4.5 V ~ 38 V, ±2.25 V ~ 19 V |
| 封装/外壳 | 8-DIP (0.300", 7.62mm) |
| 压摆率 | 45 V/µs |
| 电流 - 输入偏压 | 20pA |
| 电压 - 输入偏移 | 700µV |
| 电路数 | 2 |
| 其他名称 | 296-10423-5 |
| RoHS指令 | Lead free / RoHS Compliant |
| 工厂包装数量 | 50 |
| 电源电流 | 3.9 mA |
| 工作电源电压 | 4.5 V to 38 V, +/- 2.25 V to +/- 19 V |
| 产品种类 | Operational Amplifiers - Op Amps |
| 共模抑制比 - 闵 | 70 dB |
| 单位重量 | 0.015535 oz |
| 通道数 | 2 Channel |
| 最高工作温度 | + 70 C |
| 输入偏置电流 - 最大 | 175 pA |
| 关机 | No Shutdown |
| 最大双电源电压 | +/- 19 V |
| RoHS | RoHS Compliant |
| 输出电流 | 48 mA |
| 系列 | TLE2072A |
| 安装风格 | Through Hole |
| 输入失调电压 | 3.5 mV |
| 最低工作温度 | 0 C |
| 技术 | BiFET |
| 工作温度范围 | 0C to 70C |
| 包装类型 | PDIP |
| 引脚数 | 8 |
| 元件数 | 2 |
| 共模抑制比 | 70 dB |
| 工作温度分类 | Commercial |
| 输入偏置电流 | 0.175 nA |
| 电源要求 | Dual |
| Dual Supply Voltage (Min) | �2.25 V |
| 铁/铁I / O类型 | No |
| 关机功能 | No |
| 弧度硬化 | No |
| 单电源电压（最小值） | Not Required V |
| 单电源电压（最大值） | Not Required V |
| 单电源电压（典型值） | Not Required V |
| Dual Supply Voltage (Max) | �19 V |
| 电压增益（dB） | 106 dB |
| 单位增益带宽积 | 9.4MHz |
| Op Amp Type | :Low Noise |
| No. of Amplifiers | :2 |
| Supply Voltage Range | :± 2.25V to ± 19V |
| Amplifier Case Style | :DIP |
| No. of Pins | :8 |
| 带宽 | :10MHz |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :125°C |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :2072 |
| Gain Bandwidth | :9.4MHz |
| IC Generic Number | :2072 |
| 输入失调电压最大值 | :3.5mV |
| 工作温度范围 | :-40°C to +125°C |
| Supply Voltage + Nom | :19V |
| Supply Voltage Max | :19V |
| Supply Voltage Min | :2.25V |
| Weight (kg) | 0.00044 |
| Tariff No. | 85423300 |
| Status | ACTIVE |
| Package | Pins | PDIP (P) | 8 |
| Device Marking | View |
| Package QTY | Carrier | 50 | TUBE |
| New Flag | |
| Functional Diagram | |
| CMRR | 70 |
| GBW | 9.4 |
| Reference Design | |
| HiRel | |
| Package Group | PDIP SOIC |
| BW @ Acl | |
| Vs | 38 |
| Iib | |
| 附加功能 | |
| Rail-to-Rail | |
| IIB | 175 |
| Datasheet | SLOS181C |
| 建筑 | |
| Vn at Flatband | |
| Iq per channel | 1.8 |
| TI Design | |
| Vos (Offset Voltage @ 25C) | 3.5 |
| Rating | Catalog |
| Offset Drift | 2.3 |
| Vn at 1kHz | 11.6 |
| Total Supply Voltage | 4.5 |
| Acl, min spec gain | |
| Settling Time (01%) | |
| Offset Voltage Drift (+/-) | |
| Io |
