texas instruments

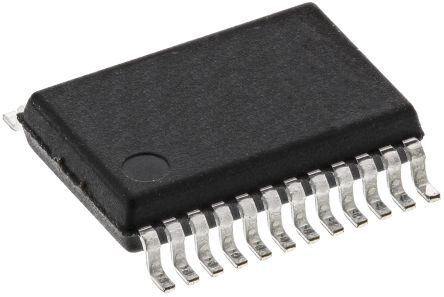

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 24SSOP |
| 高电平输出电流 | -1000 uA |
| 低电平输出电流 | 1000 uA |
| 工作电源电压 | 3 to 5.5 V |
| 最大功率耗散 | 1600 mW |
| 段数 | 16 |
| 标准包装 | Tape & Reel |
| 产品种类 | LED Lighting Drivers |
| RoHS | RoHS Compliant |
| 输入电压 | 3 V to 5.5 V |
| 最大电源电流 | 20 mA |
| 最高工作温度 | + 85 C |
| 安装风格 | SMD/SMT |
| 封装/外壳 | SSOP-24 |
| 最低工作温度 | - 40 C |
| 封装 | Reel |
| 功率耗散 | 1.6 W |
| 系列 | TLC5927 |
| 工厂包装数量 | 2500 |
| 安装 | Surface Mount |
| Package Width | 4(Max) |
| PCB | 24 |
| 最大功率耗散 | 1600 |
| 典型工作电源电压 | 3.3|5 |
| 欧盟RoHS指令 | Compliant |
| 最低工作温度 | -40 |
| 供应商封装形式 | SSOP |
| 标准包装名称 | SSOP |
| 最高工作温度 | 85 |
| Package Length | 8.75(Max) |
| 最低工作电源电压 | 3 |
| 引脚数 | 24 |
| Package Height | 1.5(Max) |
| 输出电压 | 17(Max) |
| 最大电源电流 | 20000 |
| 高电平输出电流 | -1000 |
| 最大工作电源电压 | 5.5 |
| 低电平输出电流 | 1000 |
| 铅形状 | Gull-wing |
| 输出数 | 16 |
| 内部驱动器 | No |
| 安装类型 | Surface Mount |
| 供应商设备封装 | 24-SSOP/QSOP |
| 电压 - 输出 | 17V |
| 工作温度 | -40°C ~ 85°C |
| 恒定电流 | Yes |
| 电压 - 电源 | 3 V ~ 5.5 V |
| 类型 - 主要 | LED Lighting Display, Signage, Automotive |
| 频率 | 30MHz |
| 拓扑结构 | Linear, High Side |
| RoHS指令 | Lead free / RoHS Compliant |
| 其他名称 | 296-24762-1 |
| 单位重量 | 0.004568 oz |
| 包装类型 | SSOP |
| 工作温度（最大） | 85C |
| 工作温度（最小值） | -40C |
| 工作温度分类 | Industrial |
| 电源电流 | 20000 mA |
| 弧度硬化 | No |
| 工作电源电压（典型值） | 3.3/5 V |
| 工作电源电压（最小值） | 3 V |
| 工作电源电压（最大值） | 5.5 V |
| No. of Outputs | :16 |
| 输出电流 | :120mA |
| 输出电压 | :17V |
| Driver Case Style | :SSOP |
| Input Voltage Min | :3V |
| Input Voltage Max | :5.5V |
| Dimming Control Type | :Analogue |
| 开关频率 | :30MHz |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| MSL | :MSL 2 - 1 year |
| SVHC | :No SVHC (16-Dec-2013) |
| Base Number | :5927 |
| LED Driver Application | :Automotive LED Lighting, General LED Lighting Applications, LED Display Systems |
| No. of Pins | :24 |
| 工作温度范围 | :-40°C to +85°C |
| Weight (kg) | 0.00027 |
| Tariff No. | 85423990 |
| Status | ACTIVE |
| Temp (oC) | -40 to 125 |
| Package | Pins | SSOP (DBQ) | 24 |
| Device Marking | View |
| Package QTY | Carrier | 2500 | LARGE T&R |
| Functional Diagram | fbd_slvs677b.gif |
| Ch to Ch Accuracy | 6 |
| Per Channel Drive | 120 |
| Analog Dimming Steps | 256 |
| HiRel | |
| Package Group | HTSSOP SOIC SSOP |
| Data Vin | 5.5 |
| Per Channel PWM Steps | |
| Reference Design | Y |
| Data Input | Serial |
| LED Voltage | 17 |
| Datasheet | SLVS677B |
| 特殊功能 | Thermal Shutdown LED Open Detection LED Short to Ground Detection LED Short to VLED Detection |
| Rating | Catalog |
| 数据传输速率 | 30 |
| TI Design | Y |
| 输出通道 | 16 |
| RESOURCE TYPE | LINK |
|---|---|
