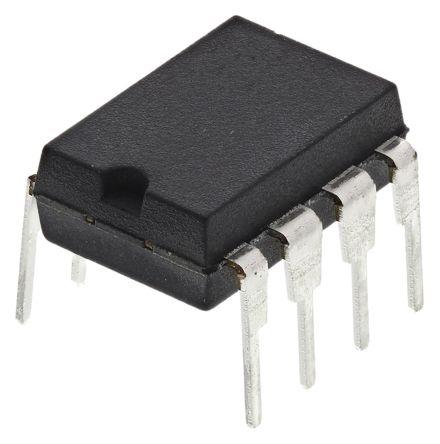

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 8PDIP |
| 分辨率 | 10 Bit |
| 转换速率 | 75 Ksps |
| 建筑 | Resistor-String |
| 数字接口类型 | Serial (3-Wire, SPI, QSPI, Microwire) |
| 每个芯片的输出端数量 | 1 |
| 输出类型 | Voltage |
| 满量程误差 | ±3 LSB |
| 积分非线性误差 | ±1 LSB |
| 最大建立时间 | 12.5(Typ) us |
| 工作温度 | 0 to 70 °C |
| 标准包装 | Rail / Tube |
| 产品种类 | Digital to Analog Converters - DAC |
| RoHS | RoHS Compliant |
| 转换器数量 | 1 |
| DAC输出端数量 | 1 |
| 接口类型 | QSPI, SPI, Serial (3-Wire, Microwire) |
| 建立时间 | 12.5 us |
| 最高工作温度 | + 70 C |
| 安装风格 | Through Hole |
| 封装/外壳 | PDIP-8 |
| 封装 | Tube |
| 最低工作温度 | 0 C |
| 系列 | TLC5615 |
| 工厂包装数量 | 50 |
| 电源电压 - 最大 | 5.5 V |
| 电源电压 - 最小 | 4.5 V |
| 参考电压 | External |
| 典型的单电源电压 | 5 |
| 安装 | Through Hole |
| Package Width | 6.6(Max) |
| PCB | 8 |
| 欧盟RoHS指令 | Compliant |
| DAC通道数 | 1 |
| 电源类型 | Single |
| 最大建立时间 | 12.5(Typ) |
| 最低工作温度 | 0 |
| 供应商封装形式 | PDIP |
| 标准包装名称 | PDIP |
| 转换器类型 | General Purpose |
| 最高工作温度 | 70 |
| 最大单电源电压 | 5.5 |
| Package Length | 10.16(Max) |
| 引脚数 | 8 |
| 最小单电源电压 | 4.5 |
| Package Height | 5.08(Max) - 0.51(Min) |
| 铅形状 | Through Hole |
| 位数 | 10 |
| 输出数目和类型 | 1 Voltage, Unipolar |
| 安装类型 | Through Hole |
| 数据接口 | MICROWIRE™, QSPI™, Serial, SPI™ |
| 供应商设备封装 | 8-PDIP |
| 电压电源 | Single Supply |
| 其他名称 | 296-3006-5 |
| 封装/外壳 | 8-DIP (0.300", 7.62mm) |
| RoHS指令 | Lead free / RoHS Compliant |
| 单位重量 | 0.015535 oz |
| 积分非线性 | +/- 1 LSB |
| 通道数 | 1 |
| 工作温度范围 | 0C to 70C |
| 包装类型 | PDIP |
| 工作温度（最大） | 70C |
| 工作温度（最小值） | 0C |
| 工作温度分类 | Commercial |
| Dual Supply Voltage (Typ) | Not Required V |
| 电源要求 | Single |
| Dual Supply Voltage (Min) | Not Required V |
| 弧度硬化 | No |
| 单电源电压（最小值） | 4.5 V |
| 单电源电压（最大值） | 5.5 V |
| 单电源电压（典型值） | 5 V |
| Dual Supply Voltage (Max) | Not Required V |
| 分辨率（位） | :10bit |
| 采样速率 | :1.21MSPS |
| Input Channel Type | :Serial |
| Supply Voltage Range | :4.5V to 5.5V |
| Digital IC Case Style | :DIP |
| No. of Pins | :8 |
| 电源电流 | :230µA |
| Operating Temperature Min | :0°C |
| Operating Temperature Max | :70°C |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :5615 |
| IC Case Style | :DIP |
| IC Generic Number | :5615 |
| IC Temperature Range | :Commercial |
| 线性误差 | :0.1% |
| Linearity Error ADC / DAC + | :0.5LSB |
| Linearity Error ADC / DAC - | :0.5LSB |
| No. of Bits | :10 |
| No. of Channels | :1 |
| No. of DACs | :1 |
| 工作温度范围 | :0°C to +70°C |
| Supply Voltage Max | :5.5V |
| Supply Voltage Min | :4.5V |
| 端接类型 | :Through Hole |
| Weight (kg) | 0.00044 |
| Tariff No. | 85411000 |
| Status | ACTIVE |
| Temp (oC) | 0 to 70 |
| Package | Pins | PDIP (P) | 8 |
| Device Marking | View |
| Package QTY | Carrier | 50 | TUBE |
| New Flag | |
| Functional Diagram | fbd_slas142e.gif |
| Output Range Min | 0 |
| 功耗 | 0.75 |
| DAC: Channels | 1 |
| HiRel | |
| Package Group | PDIP SOIC VSSOP |
| Sample / Update Rate | 0.075 |
| Gain Error | 0.3 |
| Reference Design | |
| 接口 | Serial SPI |
| DNL | |
| Datasheet | SLAS142E |
| Rating | Catalog |
| TI Design | |
| Output Range Max | 5.1 |
| INL | 1 |
| Reference: Type | Ext |
| 信噪比 | |
| SFDR |
