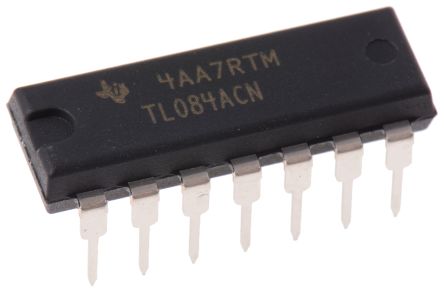

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 14PDIP |
| 每个芯片的通道数 | 4 |
| 类型 | General Purpose Amplifier |
| 典型增益带宽积 | 3 MHz |
| 典型的转换率 | 13@±15V V/us |
| 最大电源电流 | 11.2@±15V mA |
| 最大输入失调电压 | 6@±15V mV |
| 最大输入偏置电流 | 0.0002@±15V uA |
| 典型输入噪声电压密度 | 18@±15V nV/rtHz |
| 最低CMRR | 75 dB |
| 最小双电源电压 | ±3.5 V |
| 安装 | Through Hole |
| 工作温度 | 0 to 70 °C |
| 典型的同相输入噪声电流密度 | 0.01@±15V pA/rtHz |
| 典型电压增益 | 106.02 dB |
| 标准包装 | Rail / Tube |
| 制造商类型 | General Purpose Amplifier |
| 轨至轨 | No |
| Package Width | 6.6(Max) |
| PCB | 14 |
| Maximum Dual Supply Voltage | ±18 |
| 最大输入偏置电流 | 0.0002@±15V |
| 欧盟RoHS指令 | Compliant |
| 最大电源电流 | 11.2@±15V |
| 典型增益带宽积 | 3 |
| 典型电压增益 | 106.02 |
| 电源类型 | Dual |
| 最低CMRR | 75 |
| 最低工作温度 | 0 |
| 供应商封装形式 | PDIP |
| 标准包装名称 | PDIP |
| 最高工作温度 | 70 |
| 最小双电源电压 | ±3.5 |
| Typical Dual Supply Voltage | ±5|±9|±12|±15 |
| 关机支持 | No |
| Package Length | 19.69(Max) |
| 引脚数 | 14 |
| Maximum Input Offset Current | 0.0001@±15V |
| 最大输入失调电压 | 6@±15V |
| Package Height | 5.08(Max) - 0.51(Min) |
| 封装 | Tube |
| 典型的转换率 | 13@±15V |
| 技术 | BiFET |
| 铅形状 | Through Hole |
| 放大器类型 | J-FET |
| 安装类型 | Through Hole |
| 供应商设备封装 | 14-PDIP |
| 电流 - 电源 | 1.4mA |
| Voltage - Supply, Single/Dual (±) | 7 V ~ 36 V, ±3.5 V ~ 18 V |
| 封装/外壳 | 14-DIP (0.300", 7.62mm) |
| 压摆率 | 13 V/µs |
| 电流 - 输入偏压 | 30pA |
| 电压 - 输入偏移 | 3mV |
| 电路数 | 4 |
| 增益带宽积 | 3MHz |
| RoHS指令 | Lead free / RoHS Compliant |
| 工厂包装数量 | 25 |
| 电源电流 | 11.2 mA |
| 工作电源电压 | 7 V to 36 V, +/- 3.5 V to +/- 18 V |
| 产品种类 | Operational Amplifiers - Op Amps |
| 共模抑制比 - 闵 | 75 dB |
| 单位重量 | 0.032734 oz |
| 通道数 | 4 Channel |
| 最高工作温度 | + 70 C |
| 输入偏置电流 - 最大 | 200 pA |
| 关机 | No Shutdown |
| 最大双电源电压 | +/- 18 V |
| RoHS | RoHS Compliant |
| 系列 | TL084A |
| 安装风格 | Through Hole |
| 输入失调电压 | 6 mV |
| 最低工作温度 | 0 C |
| 工作温度范围 | 0C to 70C |
| 包装类型 | PDIP |
| 元件数 | 4 |
| 共模抑制比 | 75 dB |
| 工作温度分类 | Commercial |
| Dual Supply Voltage (Typ) | �5/�9/�12/�15 V |
| 输入偏置电流 | 0.2 nA |
| 电源要求 | Dual |
| Dual Supply Voltage (Min) | �3.5 V |
| 铁/铁I / O类型 | No |
| 关机功能 | No |
| 弧度硬化 | No |
| 单电源电压（最小值） | Not Required V |
| 单电源电压（最大值） | Not Required V |
| 单电源电压（典型值） | Not Required V |
| Dual Supply Voltage (Max) | �18 V |
| 电压增益（dB） | 106.02 dB |
| 单位增益带宽积 | 3MHz |
| Op Amp Type | :High Voltage |
| No. of Amplifiers | :4 |
| Supply Voltage Range | :7V to 36V |
| Amplifier Case Style | :DIP |
| No. of Pins | :14 |
| 带宽 | :3MHz |
| Operating Temperature Min | :0°C |
| Operating Temperature Max | :70°C |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :084 |
| IC Generic Number | :084 |
| IC Temperature Range | :Commercial |
| 输入失调电压最大值 | :6mV |
| Logic Function Number | :84 |
| 工作温度范围 | :0°C to +70°C |
| Supply Voltage + Nom | :15V |
| Supply Voltage Max | :36V |
| Supply Voltage Min | :7V |
| Weight (kg) | 0.016667 |
| Tariff No. | 85423300 |
| Status | ACTIVE |
| Temp (oC) | 0 to 70 |
| Package | Pins | PDIP (N) | 14 |
| Device Marking | View |
| Package QTY | Carrier | 25 | TUBE |
| New Flag | |
| Functional Diagram | fbd_slos081i.gif |
| CMRR | 75 |
| GBW | 3 |
| Reference Design | |
| HiRel | |
| Package Group | PDIP SO SOIC |
| BW @ Acl | |
| Vs | |
| Iib | |
| 附加功能 | |
| Rail-to-Rail | |
| IIB | 200 |
| Datasheet | SLOS081I |
| 建筑 | |
| Vn at Flatband | |
| Iq per channel | 2.8 |
| TI Design | |
| Vos (Offset Voltage @ 25C) | 6 |
| Rating | Catalog |
| Offset Drift | 18 |
| Vn at 1kHz | 18 |
| Total Supply Voltage | 7 |
| Acl, min spec gain | |
| Settling Time (01%) | |
| Offset Voltage Drift (+/-) | |
| Io |
