texas instruments

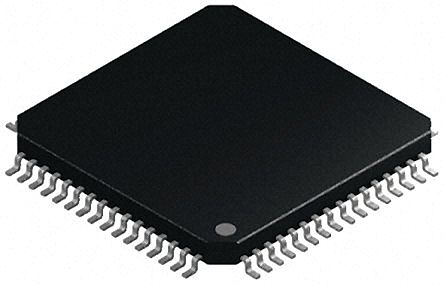

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 64HTQFP EP |
| 功能 | Headphone/Speaker |
| 放大器类型 | Class-D |
| 输入信号类型 | Single |
| 输出信号类型 | Differential|Single |
| 输出类型 | 1-Channel Mono|2-Channel Stereo|4-Channel Stereo |
| 安装 | Surface Mount |
| 总谐波失真噪声 | 0.05@8Ohm@10W % |
| 最小双电源电压 | 3|10 V |
| 工作温度 | 0 to 85 °C |
| 典型PSRR | 60 dB |
| 最大双电源电压 | 3.6|26 V |
| 标准包装 | Trays |
| Typical Output Power x Channels @ Load | 20.6x1@8Ohm|18.1x2@4Ohm|20.6x2@8O... |
| 轨至轨 | No |
| Package Width | 10.2(Max) |
| PCB | 64 |
| 最大功率耗散 | 2890 |
| 最大双电源电压 | 3.6|26 |
| 欧盟RoHS指令 | Compliant |
| Maximum Supply Current | 80@3.3V |
| 电源类型 | Dual |
| 最低工作温度 | 0 |
| 供应商封装形式 | HTQFP EP |
| 标准包装名称 | QFP |
| 最高工作温度 | 85 |
| 最小双电源电压 | 3|10 |
| 典型双电源电压 | 3.3|12|15|18|24 |
| Package Length | 10.2(Max) |
| 引脚数 | 64 |
| Package Height | 1.05(Max) |
| 封装 | Tray |
| 典型PSRR | 60 |
| 铅形状 | Gull-wing |
| 产品特点 | Digital Inputs, I²C, I²S, Mute, Short-Circuit and Thermal Protection, Shutdown, Volume Control |
| 安装类型 | Surface Mount |
| 供应商设备封装 | 64-HTQFP (10x10) |
| 最大输出功率x路数负载 | 20.6W x 2 @ 8 Ohm |
| 封装/外壳 | 64-TQFP Exposed Pad |
| 电压 - 电源 | 10 V ~ 26 V |
| 类型 | Class D |
| RoHS指令 | Lead free / RoHS Compliant |
| 电源类型 | Dual |
| 工厂包装数量 | 160 |
| 双电源电压 | 3.3 V, 12 V, 15 V, 18 V, 24 V |
| 安装风格 | SMD/SMT |
| 产品 | Class-D |
| 产品种类 | Audio Amplifiers |
| 单位重量 | 0.009108 oz |
| 总谐波失真加噪声 | 0.05 % |
| 最高工作温度 | + 85 C |
| 音频负载电阻 | 8 Ohms |
| 输出功率 | 20.6 W |
| RoHS | RoHS Compliant |
| 最大功率耗散 | 2890 mW |
| 系列 | TAS5716 |
| 最低工作温度 | 0 C |
| 电源电流 | 65 mA |
| 功率耗散 | 2.89 W |
| 工作温度范围 | 0C to 85C |
| 操作等级 | Class-D |
| 输出功率（典型值） | 20.6x1 W |
| 包装类型 | HTQFP EP |
| 音频放大器功能 | Headphone/Speaker |
| 电源抑制比 | 60 dB |
| 总谐波失真 | 0.05 |
| 工作温度分类 | Commercial |
| Dual Supply Voltage (Typ) | 3.3/12/15/18/24 V |
| 电源要求 | Dual |
| Dual Supply Voltage (Min) | 3/10 V |
| 铁/铁I / O类型 | No |
| 弧度硬化 | No |
| 单电源电压（最小值） | Not Required V |
| 单电源电压（最大值） | Not Required V |
| 单电源电压（典型值） | Not Required V |
| Dual Supply Voltage (Max) | 3.6/26 V |
| Amplifier Class | :D |
| No. of Channels | :4 |
| Supply Voltage Range | :3V to 3.6V, 10V to 26V |
| Amplifier Case Style | :TQFP |
| No. of Pins | :64 |
| 负载阻抗 | :8ohm |
| Operating Temperature Min | :0°C |
| Operating Temperature Max | :85°C |
| MSL | :MSL 3 - 168 hours |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :5716 |
| Load Impedance Min | :3.2ohm |
| 工作温度范围 | :0°C to +85°C |
| Output Power (Pout) | :20.6W @ 8ohm |
| Power Rating RMS | :20W |
| Supply Voltage Max | :26V |
| Supply Voltage Min | :3V |
| THD + N | :0.05% @ 10W, 8ohm, VCC=18V |
| 端接类型 | :SMD |
| Weight (kg) | 0.0002 |
| Tariff No. | 85423190 |
| Status | ACTIVE |
| Temp (oC) | 0 to 85 |
| Package | Pins | HTQFP (PAP) | 64 |
| Device Marking | View |
| Package QTY | Carrier | 160 | JEDEC TRAY (5+1) |
| New Flag | |
| Functional Diagram | |
| Package Group | HTQFP |
| Max Power to Single-Ended Load | 20 |
| Max Power to Bridge Tied Load | 40 |
| 输入类型 | Digital |
| 控制类型 | Hardware Software |
| Closed/Open Loop | Open |
| Power Stage Supply Min | 10 |
| Headphone Channels | |
| Min Supported Parallel Bridge Tied Load | |
| 附加功能 | |
| Min Supported Single-Ended Load | 4 |
| Analog Supply Min [V] | 3 |
| Min Supported Bridge Tied Load | 6 |
| Reference Design | |
| Analog Supply Max [V] | 3.6 |
| Datasheet | SLOS569 |
| Power Stage Supply Max | 26 |
| 建筑 | Class D |
| Max Power to Parallel Bridge Tied Load | |
| Max Speaker Outputs | 4 |
| Rating | Catalog |
| Audio Input Type | |
| Digital Supply Min [V] | 3 |
| TI Design | |
| Volume Control | Yes |
| Digital Supply Max [V] | 3.6 |
| Dynamic Range Control (DRC) | 2-Band |
| RESOURCE TYPE | LINK |
|---|---|
