texas instruments

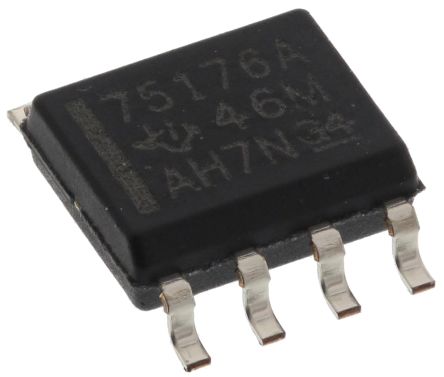

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 8SOIC |
| 数据传输拓扑 | Multidrop |
| 接口标准 | EIA/TIA-422-B|V.11 |
| 数据传输速率 | 10 Mbps |
| 功能 | Line Transceiver |
| 变送器数 | 1 |
| 发射信号类型 | Differential |
| 变送器通讯方式 | RS-422 |
| 驱动方式 | 3-State |
| 典型的单电源电压 | 5 V |
| 标准包装 | Rail / Tube |
| 接收器通讯方式 | RS-422 |
| 产品种类 | RS-422/RS-485 Interface IC |
| RoHS | RoHS Compliant |
| 工作电源电压 | - 0.3 V to + 3.6 V |
| 电源电流 | 50 mA |
| 工作温度范围 | + 70 C |
| 安装风格 | SMD/SMT |
| 封装/外壳 | SOIC-8 |
| 封装 | Tube |
| 最高工作温度 | + 70 C |
| 最低工作温度 | 0 C |
| 接收器数 | 1 |
| 工厂包装数量 | 75 |
| 典型的单电源电压 | 5 |
| 安装 | Surface Mount |
| Package Width | 4(Max) |
| PCB | 8 |
| 筛选等级 | Commercial |
| 欧盟RoHS指令 | Compliant |
| 最大电源电流 | 50 |
| 电源类型 | Single |
| 收发器数量 | 1 |
| 最低工作温度 | 0 |
| 供应商封装形式 | SOIC |
| 标准包装名称 | SOIC |
| 接收机信号类型 | Differential |
| 最高工作温度 | 70 |
| ESD保护 | No |
| 最大单电源电压 | 5.25 |
| Package Length | 5(Max) |
| 引脚数 | 8 |
| 最小单电源电压 | 4.75 |
| Package Height | 1.5(Max) |
| 铅形状 | Gull-wing |
| 协议 | RS422 |
| 安装类型 | Surface Mount |
| 复式 | Half |
| 的驱动器/接收器数 | 1/1 |
| 供应商设备封装 | 8-SOIC |
| 接收器滞后 | 50mV |
| 工作温度 | 0°C ~ 70°C |
| 电压 - 电源 | 4.75 V ~ 5.25 V |
| 类型 | Transceiver |
| 其他名称 | 296-6857-5 |
| 封装/外壳 | 8-SOIC (0.154", 3.90mm Width) |
| RoHS指令 | Lead free / RoHS Compliant |
| 外形尺寸 | 4.9 x 3.91 x 1.58mm |
| 身高 | 1.58mm |
| 长度 | 4.9mm |
| 每个线路驱动器数量 | 1 (RS422), 32 (RS485) |
| 每行接收器数 | 10 (RS422), 32 (RS485) |
| 包装类型 | SOIC |
| 宽度 | 3.91mm |
| 系列 | SN75176A |
| 单位重量 | 0.002561 oz |
| 接口电路标准1 | EIA/TIA-422-B/V.11 |
| 工作温度范围 | 0C to 70C |
| 工作温度分类 | Commercial |
| Dual Supply Voltage (Typ) | Not Required V |
| 电源要求 | Single |
| Dual Supply Voltage (Min) | Not Required V |
| 弧度硬化 | No |
| 单电源电压（最小值） | 4.75 V |
| 单电源电压（最大值） | 5.25 V |
| 单电源电压（典型值） | 5 V |
| Dual Supply Voltage (Max) | Not Required V |
| 删除 | Compliant |
| 设备类型 | :Line |
| IC Interface Type | :RS422 |
| No. of Drivers | :1 |
| Supply Voltage Min | :4.75V |
| Supply Voltage Max | :5.25V |
| Driver Case Style | :SOIC |
| No. of Pins | :8 |
| Operating Temperature Min | :0°C |
| Operating Temperature Max | :70°C |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :75176 |
| Device Marking | :SN75176AD |
| IC Generic Number | :75176 |
| IC Temperature Range | :Commercial |
| Line / Bus Driver / Receiver / Transceiver Type | :Bus Transceiver |
| Logic Function Number | :75176 |
| Output Voltage Max | :2.7V |
| 传播延迟 | :35ns |
| Supply Voltage Range | :4.75V to 5.25V |
| Weight (kg) | 0.000075 |
| Tariff No. | 85411000 |
| Status | ACTIVE |
| Temp (oC) | 0 to 70 |
| Package | Pins | SOIC (D) | 8 |
| Package QTY | Carrier | 75 | TUBE |
| Functional Diagram | |
| No of TX | 1 |
| 隔离 | No |
| HiRel | |
| Common Mode Range | -7 to 12 |
| Package Group | PDIP SOIC |
| Signaling Rate | 10 |
| Reference Design | |
| HBM ESD | 2 |
| IEC 61000-4-2 Contact | |
| No of RX | 1 |
| ICC | 50 |
| Fail Safe | None |
| Datasheet | SLLS100B |
| Number of Nodes | 32 |
| Rating | Catalog |
| TI Design | |
| Fault Protection | -10 to 15 |
| Supply Voltage(s) | 5 |
| RESOURCE TYPE | LINK |
|---|---|
