texas instruments

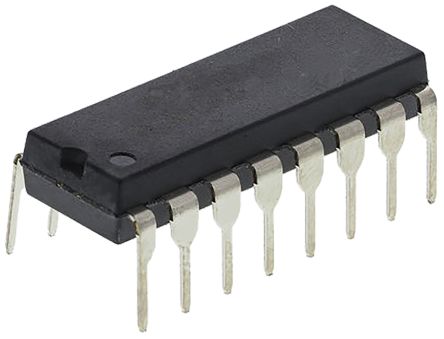

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 16PDIP |
| 家庭 | SN74LS294 |
| 工作温度 | 0 to 70 °C |
| 标准包装 | Rail / Tube |
| 产品种类 | Multipliers / Dividers |
| RoHS | RoHS Compliant |
| 产品 | Divider |
| 逻辑系列 | TTL |
| 工作电源电压 | 4.75 V to 5.25 V |
| 最高工作温度 | + 70 C |
| 最低工作温度 | 0 C |
| 安装风格 | Through Hole |
| 封装/外壳 | PDIP-16 |
| 封装 | Tube |
| 工厂包装数量 | 25 |
| 标准包装名称 | PDIP |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 70 |
| Package Height | 5.08(Max) - 0.51(Min) |
| 安装 | Through Hole |
| PCB | 16 |
| Package Width | 6.6(Max) |
| 筛选等级 | Commercial |
| 供应商封装形式 | PDIP |
| Package Length | 19.69(Max) |
| 最低工作温度 | 0 |
| 引脚数 | 16 |
| 铅形状 | Through Hole |
| 安装类型 | Through Hole |
| 逻辑类型 | Programmable Frequency Dividers/Digital Timers |
| 供应商设备封装 | 16-PDIP |
| 电源电压 | 4.75 V ~ 5.25 V |
| 其他名称 | 296-3689-5 |
| 封装/外壳 | 16-DIP (0.300", 7.62mm) |
| RoHS指令 | Lead free / RoHS Compliant |
| 外形尺寸 | 19.3 x 6.35 x 4.57mm |
| 身高 | 4.57mm |
| 长度 | 19.3mm |
| 包装类型 | PDIP |
| 宽度 | 6.35mm |
| 系列 | SN74LS294 |
| 单位重量 | 0.033711 oz |
| Weight (kg) | 0.002 |
| Tariff No. | 85411000 |
| No. of Inputs | :4 |
| 时钟频率 | :30MHz |
| Supply Voltage Min | :4.75V |
| Supply Voltage Max | :5.25V |
| Logic Case Style | :DIP |
| No. of Pins | :16 |
| Operating Temperature Min | :0°C |
| Operating Temperature Max | :70°C |
| MSL | :- |
| SVHC | :No SVHC (16-Dec-2013) |
| Count Maximum | :32768 |
| Logic Function Number | :74294 |
| Logic IC Base Number | :74294 |
| Logic IC Family | :LS |
| Logic IC Function | :Programmable Frequency Divider / Digital Timer |
| 工作温度范围 | :0°C to +70°C |
| Supply Voltage Range | :4.75V to 5.25V |
| 端接类型 | :Through Hole |
| Status | ACTIVE |
| Temp (oC) | 0 to 70 |
| Package | Pins | PDIP (N) | 16 |
| Device Marking | View |
| Package QTY | Carrier | 25 | TUBE |
| Functional Diagram | |
| Technology Family | LS |
| tpd @ Nom Voltage | 12 |
| 输入类型 | TTL |
| Bits | 1 |
| HiRel | |
| Package Group | PDIP |
| 输出类型 | TTL |
| VCC | 5.25 |
| Datasheet | SDLS153 |
| F @ Nom Voltage | 35 |
| ICC @ Nom Voltage | 50 |
| Schmitt Trigger | No |
| Rating | Catalog |
| Output Drive (IOL/IOH) | 24/-12 |
| 电压 | 5 |
| RESOURCE TYPE | LINK |
|---|---|
