texas instruments

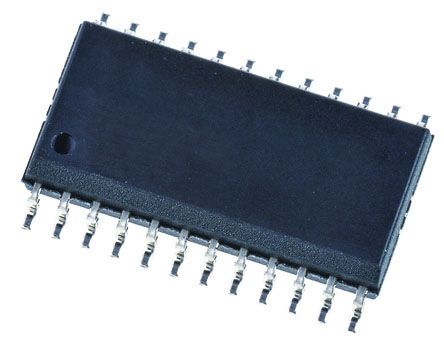

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 24SOIC |
| 每个芯片的通道数 | 8 |
| 每个芯片的元件数 | 1 |
| 逻辑功能 | Registered Transceiver with Parity Checker |
| 逻辑系列 | ABT |
| 输出电平 | TTL |
| 输出类型 | 3-State |
| 数据流方向 | Bi-Directional |
| 触发类型 | Positive-Edge |
| 典型工作电源电压 | 5 V |
| 标准包装 | Rail / Tube |
| 极性 | Non-Inverting |
| 加工技术 | BiCMOS |
| 安装 | Surface Mount |
| Absolute Propagation Delay Time | 11.2 |
| Package Width | 7.6(Max) |
| PCB | 24 |
| 输入电平 | TTL |
| 典型工作电源电压 | 5 |
| 欧盟RoHS指令 | Compliant |
| 最低工作温度 | -40 |
| 供应商封装形式 | SOIC |
| 标准包装名称 | SOIC |
| 最高工作温度 | 85 |
| Package Length | 15.6(Max) |
| 最低工作电源电压 | 4.5 |
| 引脚数 | 24 |
| Package Height | 2.35(Max) |
| 封装 | Tube |
| Typical Quiescent Current | 24000 |
| 最大工作电源电压 | 5.5 |
| 铅形状 | Gull-wing |
| 输出 - 电流高，低 | 32mA, 64mA |
| 安装类型 | Surface Mount |
| 每个元件的位元数 | 8 |
| 逻辑类型 | Transceiver, Inverting |
| 供应商设备封装 | 24-SOIC |
| 工作温度 | -40°C ~ 85°C |
| 电压 - 电源 | 4.5 V ~ 5.5 V |
| 元件数 | 2 |
| 其他名称 | 296-4098-5 |
| 封装/外壳 | 24-SOIC (0.295", 7.50mm Width) |
| RoHS指令 | Lead free / RoHS Compliant |
| 工厂包装数量 | 25 |
| 封装/外壳 | SOIC-24 |
| 功能 | 8-Bit to 9-Bit Parity Bus Registered Transceiver with Parity Checker |
| 安装风格 | SMD/SMT |
| 产品种类 | Bus Transceivers |
| 高电平输出电流 | - 32 mA |
| 单位重量 | 0.022025 oz |
| 传播延迟时间 | 5.3 ns |
| 最高工作温度 | + 85 C |
| 低电平输出电流 | 64 mA |
| 电源电压 - 最大 | 5.5 V |
| 电源电压 - 最小 | 4.5 V |
| 电路数 | 1 |
| RoHS | RoHS Compliant |
| 系列 | SN74ABT833 |
| 最低工作温度 | - 40 C |
| Logic Device Type | :Transceiver, Non Inverting |
| Supply Voltage Min | :4.5V |
| Supply Voltage Max | :5.5V |
| Logic Case Style | :SOIC |
| No. of Pins | :24 |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (20-Jun-2013) |
| Logic Function Number | :74833 |
| Logic IC Base Number | :74833 |
| Logic IC Family | :ABT |
| Logic IC Function | :8-Bit to 9-Bit Parity Bus Transceiver |
| 工作温度范围 | :-40°C to +85°C |
| Supply Voltage Range | :4.5V to 5.5V |
| 端接类型 | :SMD |
| Weight (kg) | 0.0025 |
| Tariff No. | 85423990 |
| Status | ACTIVE |
| Replaced By | |
| Temp (oC) | -40 to 85 |
| Package | Pins | SOIC (DW) | 24 |
| Device Marking | View |
| Package QTY | Carrier | 25 | TUBE |
| Rating | Catalog |
| Output Drive (IOL/IOH) | -32/64 |
| F @ Nom Voltage | 150 |
| Technology Family | ABT |
| Package Group | SO SOIC |
| Datasheet | SCBS195C |
| tpd @ Nom Voltage | 5.3 |
| VCC | 5.5 |
| 输入类型 | TTL |
| 电压 | 5 |
| ICC @ Nom Voltage | 0.25 |
| HiRel | |
| Bits | 9 |
| Schmitt Trigger | No |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
