Texas Instruments

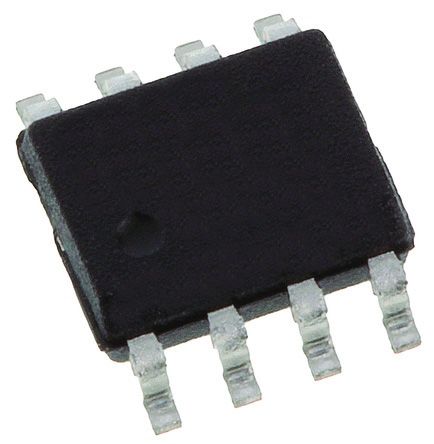

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 典型的单电源电压 | 5 |
| 安装 | Surface Mount |
| 数据传输拓扑 | Multipoint |
| Package Width | 4(Max) |
| PCB | 8 |
| 功能 | Line Transceiver |
| 欧盟RoHS指令 | Compliant |
| 电源类型 | Single |
| 收发器数量 | 1 |
| 数据传输速率 | 10Mbps(Max) |
| 最低工作温度 | -40 |
| 变送器数 | 1 |
| 供应商封装形式 | SOIC |
| 标准包装名称 | SOIC |
| 接收机信号类型 | Differential |
| 最高工作温度 | 105 |
| 最大单电源电压 | 5.5 |
| 接收器数 | 1 |
| 发射信号类型 | Differential |
| Package Length | 5(Max) |
| 引脚数 | 8 |
| 最小单电源电压 | 3.15 |
| Package Height | 1.5(Max) |
| 封装 | Tube |
| 接口标准 | EIA/TIA-485-A|RS-485 |
| 铅形状 | Gull-wing |
| 协议 | RS485 |
| 安装类型 | Surface Mount |
| 标准包装 | 75 |
| 复式 | Half |
| 的驱动器/接收器数 | 1/1 |
| 供应商设备封装 | 8-SOIC |
| 接收器滞后 | 50mV |
| 工作温度 | -40°C ~ 125°C |
| 电压 - 电源 | 3.15 V ~ 5.5 V |
| 封装/外壳 | 8-SOIC (0.154", 3.90mm Width) |
| 类型 | Transceiver |
| RoHS指令 | Lead free / RoHS Compliant |
| 封装/外壳 | 8-SOIC (0.154", 3.90mm Width) |
| 外形尺寸 | 4.9 x 3.91 x 1.58mm |
| 身高 | 1.58mm |
| 长度 | 4.9mm |
| 最高工作温度 | +105 °C |
| 最低工作温度 | -40 °C |
| 每个线路驱动器数量 | 32 |
| 每行接收器数 | 32 |
| 包装类型 | SOIC |
| 典型的单电源电压 | 5 V |
| 宽度 | 3.91mm |
| 工作电源电压 | 5 V |
| 安装风格 | SMD/SMT |
| 产品种类 | RS-485 Interface IC |
| 工作温度范围 | - 40 C to + 125 C |
| 系列 | SN65HVD1782 |
| 单位重量 | 0.002677 oz |
| 驱动器数 | 1 |
| 最大功率耗散 | 905 mW |
| RoHS | RoHS Compliant |
| 关机 | No |
| 工厂包装数量 | 75 |
| 电源电流 | 4 mA |
| 传播延迟时间ns | 55 ns, 80 ns |
| 接口电路标准1 | EIA/TIA-485-A/RS-485 |
| 工作温度范围 | -40C to 105C |
| 工作温度分类 | Industrial |
| Dual Supply Voltage (Typ) | Not Required V |
| 电源要求 | Single |
| Dual Supply Voltage (Min) | Not Required V |
| 弧度硬化 | No |
| 单电源电压（最小值） | 3.15 V |
| 单电源电压（最大值） | 5.5 V |
| 单电源电压（典型值） | 5 V |
| Dual Supply Voltage (Max) | Not Required V |
| 设备类型 | :Line Driver / Receiver |
| IC Interface Type | :RS485 |
| No. of Drivers | :1 |
| Supply Voltage Min | :3.15V |
| Supply Voltage Max | :5.5V |
| Driver Case Style | :SOIC |
| No. of Pins | :8 |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :105°C |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :65 |
| Supply Voltage Range | :3.15V to 5.5V |
| 端接类型 | :SMD |
| Weight (kg) | 0.0002 |
| Tariff No. | 85423190 |
| Status | ACTIVE |
| Temp (oC) | -40 to 105 |
| Package | Pins | SOIC (D) | 8 |
| Device Marking | View |
| Package QTY | Carrier | 75 | TUBE |
| Functional Diagram | alt_slls877f.gif |
| No of TX | 1 |
| 隔离 | No |
| HiRel | |
| Common Mode Range | -7 to 12 |
| Package Group | PDIP SOIC |
| Signaling Rate | 10 |
| Reference Design | |
| HBM ESD | 16 |
| IEC 61000-4-2 Contact | |
| No of RX | 1 |
| ICC | 6 |
| Fail Safe | Idle Open Short |
| Datasheet | SLLS877F |
| Number of Nodes | 64 |
| Rating | Catalog |
| TI Design | |
| Fault Protection | -30 to 30 |
| Supply Voltage(s) | 3.3 5 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
