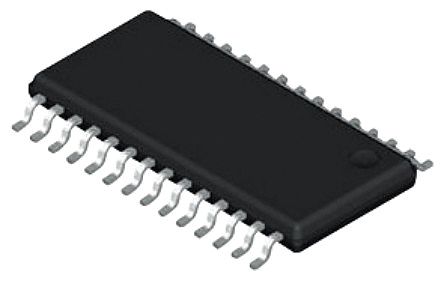

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 28TSSOP |
| 工作温度 | -40 to 105 °C |
| 标准包装 | Tape & Reel |
| 输出数 | 1 |
| 安装类型 | Surface Mount |
| 供应商设备封装 | 28-TSSOP |
| 封装 | Tape & Reel (TR) |
| 应用范围 | Controller, Photovoltaic Solar Panels |
| 电压 - 电压 | 4.75 V ~ 5.25 V |
| 封装/外壳 | 28-TSSOP (0.173", 4.40mm Width) |
| RoHS指令 | Lead free / RoHS Compliant |
| 其他名称 | SM72442MTE/NOPBCT |
| 工厂包装数量 | 250 |
| 输入电流 | 0.01 uA |
| 工作温度范围 | - 40 C to + 105 C |
| 系列 | SM72442 |
| 输入电压范围 | 4.75 V to 5.25 V |
| 安装风格 | SMD/SMT |
| 电源电压 | 4.75 V to 5.25 V |
| 封装/外壳 | TSSOP-28 |
| 电源电流 | 11.5 mA |
| 类型 | PWM Controller |
| RoHS | RoHS Compliant |
| 安装 | Surface Mount |
| 包装类型 | TSSOP |
| 引脚数 | 28 |
| 工作温度（最大） | 105C |
| 工作温度（最小值） | -40C |
| 表壳长度 | 9.7 mm |
| 筛选等级 | Industrial |
| 表壳厚度 | 0.9 mm |
| 弧度硬化 | No |
| Supply Voltage Min | :4.75V |
| Supply Voltage Max | :5.25V |
| Digital IC Case Style | :TSSOP |
| No. of Pins | :28 |
| 频率 | :220kHz |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :105°C |
| MSL | :MSL 3 - 168 hours |
| SVHC | :No SVHC (16-Dec-2013) |
| Supply Voltage Range | :4.75V to 5.25V |
| Weight (kg) | 0.000175 |
| Tariff No. | 85423190 |
| IC Function | :- |
| Brief Features | :- |
| Status | ACTIVE |
| Temp (oC) | -40 to 125 |
| Package | Pins | TSSOP (PW) | 28 |
| Device Marking | View |
| Package QTY | Carrier | 250 | SMALL T&R |
| Control Mode | |
| 开关频率 | 220 |
| Functional Diagram | fbd_snvs689h.gif |
| Gate Drive | |
| Undervoltage Lockout | Fixed |
| New Flag | |
| Iout2 | |
| HiRel | |
| 输出电压 | |
| Package Group | TSSOP |
| Reference Design | Y |
| 拓扑结构 | Buck-Boost |
| 占空比 | |
| Iout | |
| Datasheet | SNVS689H |
| Vout2 | |
| 特殊功能 | |
| Market Segment | Communications & Telecom |
| Rating | Catalog |
| TI Design | |
| Soft Start | Fixed |
| Iq | |
| Vin | 5.25 |
| Regulated Outputs | 1 |
| Shutdown Current |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
