Texas Instruments

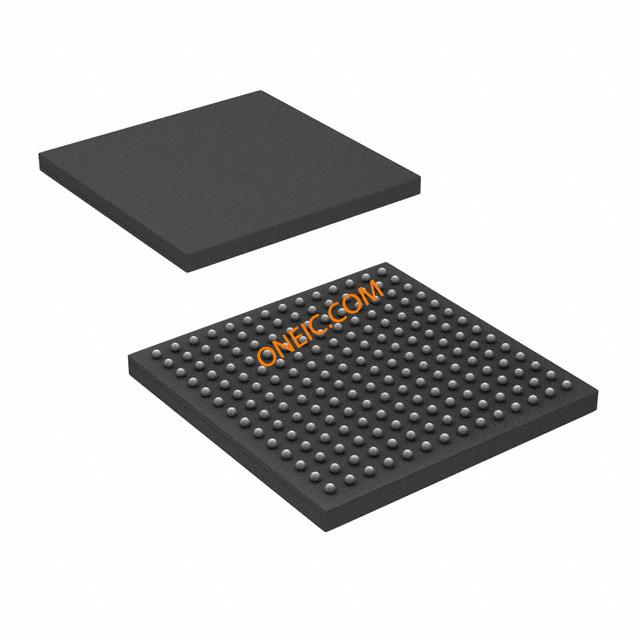

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Package Width | 15 |
| 安装 | Surface Mount |
| Differential Input Low Threshold Voltage | -0.05 |
| Package Length | 15 |
| PCB | 196 |
| 筛选等级 | Industrial |
| 最大功率耗散 | 3700 |
| 功能 | Deserializer |
| 欧盟RoHS指令 | Compliant |
| 每个芯片的元件数 | 6 |
| 最低工作温度 | -40 |
| 传输速率 | 660 |
| 供应商封装形式 | LBGA |
| 标准包装名称 | BGA |
| 最高工作温度 | 85 |
| 接收器数 | 1 |
| 输入信号类型 | LVDS |
| Differential Input High Threshold Voltage | 0.05 |
| 引脚数 | 196 |
| Package Height | 1.03 |
| 驱动器数 | 10 |
| 封装 | Tape and Reel |
| 典型工作电源电压 | 3.3 |
| 铅形状 | Ball |
| 输出数 | 10 |
| 输入数 | 1 |
| 安装类型 | Surface Mount |
| 数据传输速率 | 660Mbps |
| 供应商设备封装 | 196-BGA (15x15) |
| 输出类型 | LVDS |
| 工作温度 | -40°C ~ 85°C |
| 电压 - 电源 | 3 V ~ 3.6 V |
| 输入类型 | LVDS |
| 标准包装 | 1,000 |
| 封装/外壳 | 196-LBGA |
| RoHS指令 | Lead free / RoHS Compliant |
| 工厂包装数量 | 1000 |
| 系列 | SCAN926260 |
| 安装风格 | SMD/SMT |
| RoHS | RoHS Compliant |
| Status | ACTIVE |
| Replaced By | |
| Temp (oC) | -40 to 85 |
| Package | Pins | NFBGA (NZH) | 196 |
| Device Marking | View |
| Package QTY | Carrier | 1000 |
| Functional Diagram | fbd_snls153h.gif |
| No of Tx | |
| Payload/Channel | 660 |
| 功耗 | 1650 |
| HiRel | |
| Start/Stop Bit | Yes |
| 信号调理 | |
| Number of Parallel Inputs | |
| Driver (RL) | |
| Number of Parallel Outputs | |
| Clock Max | 66 |
| No of Rx | 6 |
| Type of Line Circuit | |
| Package Group | NFBGA |
| Compression Ratio | 10 to 1 |
| 脚印 | |
| Serial Data Transmitter Channels | |
| Total Throughput | 3960 |
| PLL Frequency | 16-66 |
| Driver tpd | |
| SerDes | |
| Receiver tpd | |
| 工作温度范围 | -40 to 85 |
| ICC | 600 |
| Output Compatibility | LVTTL |
| Serial Data Receiver Channels | |
| Datasheet | SNLS153H |
| 通讯 | Yes |
| ESD | 2 |
| Input Compatibility | LVDS |
| Data Throughput | 3960 |
| 特殊功能 | |
| Clock Min | 16 |
| Rating | Catalog |
| Receiver (Vth) | |
| JTAG11491 | Yes |
| SupplyVoltage | 3.3 |
| Supply Voltage(s) | 3.3 |
| Parallel Bus Width | 10 |
| Sensing & Imaging | Yes |
| Number Transmitters | |
| Number Receivers | 6 |
| 工作电源电流 | 600 mA |
| 类型 | LVTTL |
| 工作电源电压 | 3.3 V |
| 品牌 | Texas Instruments |
| 最高工作温度 | + 85 C |
| 最大输入电压 | 50 mV |
| 长度 | 15 mm |
| 电源电压 - 最大 | 3.6 V |
| 电源电压 - 最小 | 3 V |
| 输入电压最小 | - 50 mV |
| 身高 | 1.03 mm |
| 最低工作温度 | - 40 C |
| Pd - Power Dissipation | 3.7 W |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
