Texas Instruments

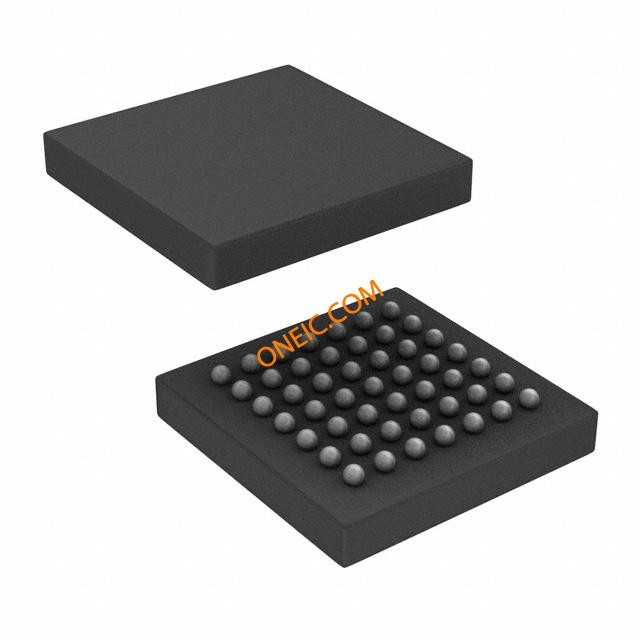

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 功能 | Deserializer |
| 输出数 | 10 |
| 输入数 | 1 |
| 安装类型 | Surface Mount |
| 数据传输速率 | 800Mbps |
| 供应商设备封装 | 49-BGA (7x7) |
| 输出类型 | LVDS |
| 封装 | Tape & Reel (TR) |
| 工作温度 | -40°C ~ 125°C |
| 电压 - 电源 | 3 V ~ 3.6 V |
| 输入类型 | LVDS |
| 标准包装 | 2,000 |
| 封装/外壳 | 49-LFBGA |
| 工厂包装数量 | 2000 |
| 系列 | SCAN921226H |
| 安装风格 | SMD/SMT |
| RoHS | RoHS Compliant |
| Status | ACTIVE |
| Replaced By | |
| Temp (oC) | -40 to 125 |
| Package | Pins | NFBGA (NZA) | 49 |
| Device Marking | View |
| Package QTY | Carrier | 2000 |
| Functional Diagram | fbd_snls185c.gif |
| No of Tx | |
| Payload/Channel | 800 |
| 功耗 | 330 |
| HiRel | |
| Start/Stop Bit | Yes |
| 信号调理 | |
| Number of Parallel Inputs | |
| Driver (RL) | |
| Number of Parallel Outputs | |
| Clock Max | 80 |
| No of Rx | 1 |
| Type of Line Circuit | |
| Package Group | NFBGA |
| Compression Ratio | 10 to 1 |
| 脚印 | |
| Serial Data Transmitter Channels | |
| Total Throughput | 800 |
| PLL Frequency | 20-80 |
| Driver tpd | |
| SerDes | |
| Receiver tpd | |
| 工作温度范围 | -40 to 125 |
| ICC | 120 |
| Output Compatibility | LVTTL |
| Serial Data Receiver Channels | |
| Datasheet | SNLS185C |
| 通讯 | Yes |
| ESD | 2 |
| Input Compatibility | LVDS BLVDS |
| Data Throughput | 800 |
| 特殊功能 | High Temperature |
| Clock Min | 20 |
| Rating | Catalog |
| Receiver (Vth) | |
| JTAG11491 | Yes |
| SupplyVoltage | 3.3 |
| Supply Voltage(s) | 3.3 |
| Parallel Bus Width | 10 |
| Sensing & Imaging | Yes |
| Number Transmitters | |
| Number Receivers | 1 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
