texas instruments

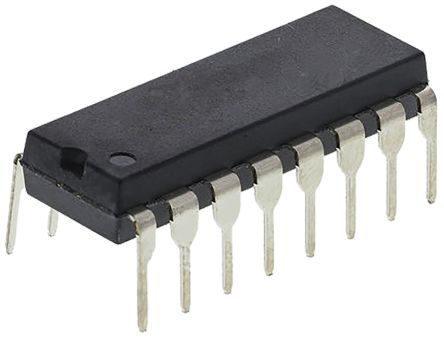

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 16PDIP |
| 工作温度 | -25 to 85 °C |
| 标准包装 | Rail / Tube |
| 标准包装名称 | PDIP |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 85 |
| Package Height | 5.08(Max) - 0.51(Min) |
| 安装 | Through Hole |
| PCB | 16 |
| Package Width | 6.6(Max) |
| 供应商封装形式 | PDIP |
| Package Length | 19.69(Max) |
| 最低工作温度 | -25 |
| 引脚数 | 16 |
| 铅形状 | Through Hole |
| 电流 - 输出/通道 | 10mA |
| 放大器类型 | General Purpose |
| 安装类型 | Through Hole |
| 供应商设备封装 | 16-PDIP |
| 增益带宽积 | 150kHz |
| 封装 | Tube |
| 电流 - 电源 | 3mA |
| Voltage - Supply, Single/Dual (±) | ±5 V ~ 18 V |
| 封装/外壳 | 16-DIP (0.300", 7.62mm) |
| 压摆率 | 1.5 V/µs |
| 电压 - 输入偏移 | 1mV |
| 电路数 | 1 |
| 其他名称 | Q782291 |
| RoHS指令 | Lead free / RoHS Compliant |
| 工厂包装数量 | 25 |
| 产品种类 | Current Sense Amplifiers |
| 最低工作温度 | - 25 C |
| 描述/功能 | PRECISION 4MA TO 20MA CURRENT LOOP RECEIVER |
| 系列 | RCV420 |
| 共模抑制比 - 闵 | 86 dB |
| 单位重量 | 0.037172 oz |
| 输入失调电压 | 1000 uV |
| 电源电压 - 最大 | 36 V |
| 安装风格 | Through Hole |
| 电源电压 - 最小 | 11.4 V |
| 最高工作温度 | + 85 C |
| RoHS | RoHS Compliant |
| 包装类型 | PDIP |
| 工作温度（最大） | 85C |
| 工作温度（最小值） | -25C |
| 工作温度分类 | Commercial |
| 弧度硬化 | No |
| No. of Amplifiers | :1 |
| Amplifier Case Style | :DIP |
| No. of Pins | :16 |
| 带宽 | :150kHz |
| CMRR | :86dB |
| Supply Voltage Min | :11.4V |
| Supply Voltage Max | :18V |
| 电源电流 | :3mA |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| 准确性 | :0.1% |
| Base Number | :420 |
| 工作温度范围 | :-40°C to +85°C |
| Output Current Per Channel | :10mA |
| Sensor / Transducer Type | :Current |
| Sensor Case Style | :DIP |
| Supply Voltage Range | :-5V, 11.4V to ± 18V |
| 端接类型 | :Through Hole |
| Weight (kg) | 0.000035 |
| Tariff No. | 85423190 |
| 案例 | DIP16 |
| Integrated circuits features | precision |
| 输出电流 | 10mA |
| Integrated circuit type | current-loop receiver |
| Gross weight | 2.54 g |
| 频率 | 150kHz |
| 电源电压 | 5...18V DC |
| Multiplicity | 1 |
| spg | 25 |
| Collective package [pcs] | 25 |
| DC supplying current | 3mA |
| Status | ACTIVE |
| Package | Pins | PDIP (N) | 16 |
| Device Marking | View |
| Package QTY | Carrier | 25 | TUBE |
| Functional Diagram | |
| Offset Voltage (+/-) | 1000 |
| Non-Linearity | 0.002 |
| Loop Voltage | |
| Output Zero Error (+/-) | |
| Sensor Excitation | Vref=10V |
| 输出范围 | 0 to 5V |
| Package Group | PDIP |
| Reference Design | |
| Span Error | |
| Auxiliary Output Voltage | |
| Full Scale Input Range | 4 to 20mA |
| CMRR, 60Hz | 86 |
| Datasheet | SBVS019 |
| TI Design | |
| Vs | 36 |
| Offset Voltage Drift (+/-) | 25 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
