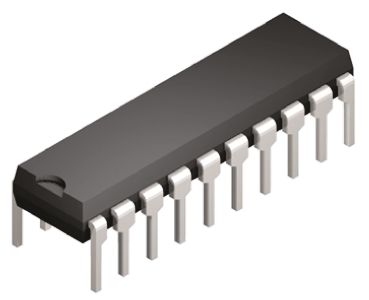

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 20PDIP |
| 姓 | MSP430 |
| 程序存储器类型 | Flash |
| 程序存储器大小 | 8 KB |
| 最大速度 | 16 MHz |
| 数据总线宽度 | 16 Bit |
| RAM大小 | 256 byte |
| 工作电源电压 | 2.5|3.3 V |
| 工作温度 | -40 to 85 °C |
| 接口类型 | I2C/SPI |
| 可编程输入/输出数 | 16 |
| 看门狗 | 1 |
| 标准包装 | Trays |
| 产品种类 | 16-bit Microcontrollers - MCU |
| RoHS | RoHS Compliant |
| 核心 | MSP430 |
| 最大时钟频率 | 16 MHz |
| 数据RAM大小 | 256 B |
| 片上ADC | Yes |
| 工作温度范围 | - 40 C to + 85 C |
| 封装/外壳 | PDIP-20 |
| 安装风格 | Through Hole |
| 最高工作温度 | + 85 C |
| 计时器数 | 2 |
| 信息处理器系列 | 2 Series |
| 工厂包装数量 | 20 |
| 商品名 | MSP430 |
| 安装 | Through Hole |
| Package Width | 6.6(Max) |
| PCB | 20 |
| 欧盟RoHS指令 | Compliant |
| 指令集架构 | RISC |
| SPI | 1 |
| 最大工作电源电压 | 3.6 |
| 最低工作温度 | -40 |
| 供应商封装形式 | PDIP |
| 标准包装名称 | PDIP |
| 最高工作温度 | 85 |
| 最大时钟频率 | 16 |
| 数据总线宽度 | 16 |
| 最大速度 | 16 |
| Package Length | 26.92(Max) |
| CECC合格 | No |
| 最低工作电源电压 | 1.8 |
| 引脚数 | 20 |
| Package Height | 5.08(Max) - 0.51(Min) |
| 典型工作电源电压 | 2.5|3.3 |
| 可编程性 | Yes |
| I2C | 1 |
| 铅形状 | Through Hole |
| 封装 | Tube |
| 核心规格 | 16-Bit |
| 振荡器型 | Internal |
| 连通性 | I²C, SPI, USI |
| I / O针脚数 | 16 |
| 电压 - 电源（Vcc / VDD） | 1.8 V ~ 3.6 V |
| 周边设备 | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| 速度 | 16MHz |
| 其他名称 | MSP430G2412IN20-ND |
| RoHS指令 | Lead free / RoHS Compliant |
| 系列 | MSP430G2412 |
| 最低工作温度 | - 40 C |
| Controller Family/Series | :MSP430G2xx |
| RAM Memory Size | :256Byte |
| CPU Speed | :16MHz |
| No. of I/O's | :16 |
| Digital IC Case Style | :DIP |
| No. of Pins | :20 |
| Embedded Interface Type | :I2C, SPI, USI |
| Supply Voltage Min | :1.8V |
| Supply Voltage Max | :3.6V |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (16-Dec-2013) |
| No. of Timers | :1 |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-40°C |
| Supply Voltage Range | :1.8V to 3.6V |
| Weight (kg) | 0.2273 |
| Tariff No. | 85423190 |
| Status | ACTIVE |
| Temp (oC) | -40 to 85 |
| Package | Pins | PDIP (N) | 20 |
| Device Marking | View |
| Package QTY | Carrier | 20 |
| DMA | 0 |
| AES | N/A |
| Functional Diagram | fbd_slas722g.gif |
| Special I/O | Capacitive Touch I/O |
| SRAM | 0.25 |
| GPIO | 16 |
| Standby Power (LPM3-uA) | 0.7 |
| HiRel | |
| Wakeup Time (us) | 1.5 |
| Non-volatile Memory (KB) | 8 |
| UART | 0 |
| Comparators | 8 |
| Package Group | PDIP QFN TSSOP |
| BSL | None |
| Timers - 16-bit | 1 |
| Reference Design | |
| Active Power (uA/MHz) | 320 |
| Multiplier | N/A |
| Datasheet | SLAS722G |
| ADC | Slope |
| 附加功能 | Watchdog Brown Out Reset |
| TI Design | |
| Max VCC | 3.6 |
| Min VCC | 1.8 |
| 频率 | 16 |
| Timers - 32-bit | 0 |
| RESOURCE TYPE | LINK |
|---|---|
