Texas Instruments

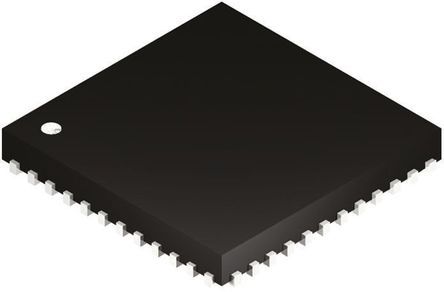

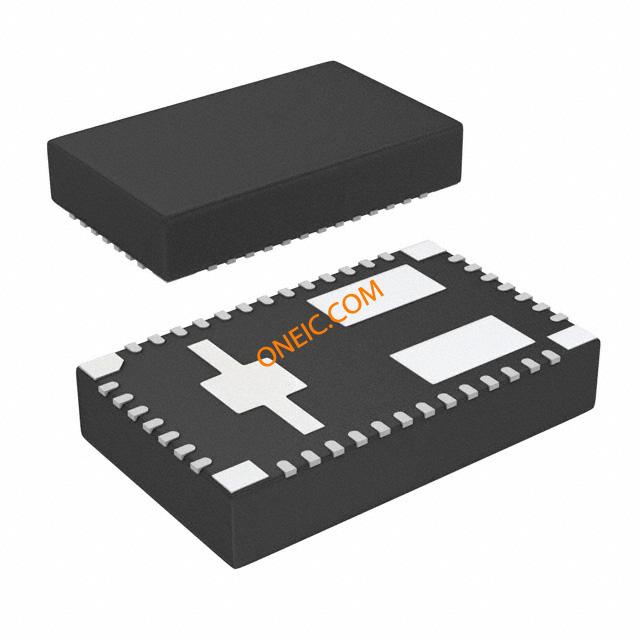

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 输出数 | 1 |
| 产品特点 | OCP, OTP, UVLO |
| 安装类型 | Surface Mount |
| 类型 | Non-Isolated PoL Module |
| 标准包装 | 250 |
| 电压 - 输出1 | 1.2 ~ 5.5 V |
| 尺寸/尺寸 | 0.59" L x 0.35" W x 0.11" H (15.0mm x 9.0mm x 2.8mm) |
| 效率 | 94% |
| 封装 | Tape & Reel (TR) |
| 电流 - 输出（最大） | 6A |
| 电压 - 输入（最大） | 14.5V |
| 封装/外壳 | 47-QFN |
| 工作温度 | -40°C ~ 85°C |
| 电压 - 输入（最小值） | 1.7V |
| 功率（瓦） - 制造商系列 | 33W |
| 功率（瓦特） - 最大 | 33W |
| DC / DC Converter Type | :Non Isolated POL |
| DC / DC Converter Output Type | :Adjustable |
| Input Voltage DC Min | :1.7V |
| Input Voltage DC Max | :14.5V |
| No. of Outputs | :1 |
| Output Voltage Nom. | :- |
| Output Current Max | :6A |
| DC / DC Converter Mounting | :SMD |
| 深度 | :15.15mm |
| 宽度 | :9.15mm |
| 身高 | :2.9mm |
| Approvals / Standards | :- |
| MSL | :MSL 3 - 168 hours |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-40°C |
| Output Voltage Max | :5.5V |
| Output Voltage Min | :1.2V |
| SVHC | :No SVHC (16-Dec-2013) |
| Weight (kg) | 0.0063 |
| Tariff No. | 85423990 |
| Primary Input Voltage | :14.5V |
| 输出电流 | :6A |
| No. of Pins | :47 |
| RoHS指令 | Contains lead / RoHS non-compliant |
| Status | ACTIVE |
| Temp (oC) | -40 to 85 |
| Package | Pins | B1QFN (RUQ) | 47 |
| Device Marking | View |
| Package QTY | Carrier | 250 | SMALL T&R |
| New Flag | |
| 开关频率 | |
| Functional Diagram | fbd_snvs996.gif |
| 输出电压 | 5.5 |
| 品牌 | SIMPLE SWITCHER |
| Package Group | B1QFN |
| Reference Design | |
| 占空比 | |
| 工作温度范围 | -40 to 85 |
| Iout | 6 |
| Switch Current Limit | |
| Datasheet | SNVS996 |
| 特殊功能 | EMI Tested Enable Frequency Synchronization Power Good Remote Sense Tracking |
| TI Design | |
| Soft Start | Adjustable |
| Iq | |
| Vin | 14.5 |
| Regulated Outputs | 1 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
