texas instruments

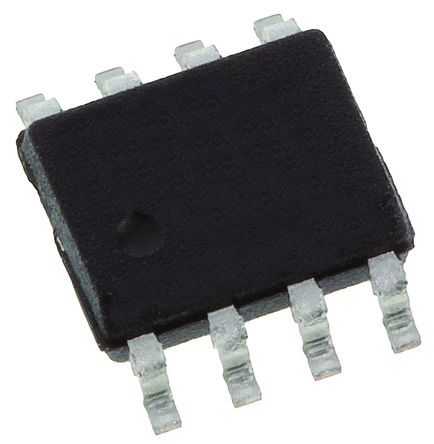

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 8SOIC |
| 每个芯片的通道数 | 2 |
| 类型 | General Purpose Amplifier |
| 典型增益带宽积 | 0.7 MHz |
| 典型的转换率 | 0.3@±15V V/us |
| 最大电源电流 | 1.2@5V@0C to 70C mA |
| 最大输入失调电压 | 3@30V mV |
| 最大输入偏置电流 | 0.1@5V uA |
| 典型输入噪声电压密度 | 40@±15V nV/rtHz |
| 最低CMRR | 65 dB |
| 最小单电源电压 | 3 V |
| 最大单电源电压 | 32 V |
| 最小双电源电压 | ±1.5 V |
| 最大双电源电压 | ±16 V |
| 安装 | Surface Mount |
| 工作温度 | 0 to 70 °C |
| 典型电压增益 | 100 dB |
| 标准包装 | Rail / Tube |
| 电流 - 输出/通道 | 30mA |
| 放大器类型 | General Purpose |
| 安装类型 | Surface Mount |
| 供应商设备封装 | 8-SOIC |
| 增益带宽积 | 700kHz |
| 封装 | Tube |
| 电流 - 电源 | 1mA |
| Voltage - Supply, Single/Dual (±) | 3 V ~ 32 V, ±1.5 V ~ 16 V |
| 封装/外壳 | 8-SOIC (0.154", 3.90mm Width) |
| 压摆率 | 0.3 V/µs |
| 电流 - 输入偏压 | 20nA |
| 电压 - 输入偏移 | 2mV |
| 电路数 | 2 |
| 其他名称 | 296-9553-5 |
| RoHS指令 | Lead free / RoHS Compliant |
| 工厂包装数量 | 75 |
| 电源电流 | 1.2 mA |
| 工作电源电压 | 3 V to 32 V |
| 产品种类 | Operational Amplifiers - Op Amps |
| 共模抑制比 - 闵 | 65 dB |
| 单位重量 | 0.002561 oz |
| 通道数 | 2 Channel |
| 最高工作温度 | + 70 C |
| 输入偏置电流 - 最大 | - 250 nA |
| 关机 | No Shutdown |
| RoHS | RoHS Compliant |
| 输出电流 | 30 mA |
| 系列 | LM358A |
| 安装风格 | SMD/SMT |
| 输入失调电压 | 3 mV |
| 最低工作温度 | 0 C |
| 技术 | Bipolar |
| 工作温度范围 | 0C to 70C |
| 包装类型 | SOIC |
| 引脚数 | 8 |
| 元件数 | 2 |
| 共模抑制比 | 65 dB |
| 工作温度分类 | Commercial |
| 输入偏置电流 | 100 nA |
| 电源要求 | Single/Dual |
| Dual Supply Voltage (Min) | �1.5 V |
| 铁/铁I / O类型 | No |
| 关机功能 | No |
| 弧度硬化 | No |
| 单电源电压（最小值） | 3 V |
| 单电源电压（最大值） | 32 V |
| 单电源电压（典型值） | 5/9/12/15/18/24/28 V |
| Dual Supply Voltage (Max) | �16 V |
| 电压增益（dB） | 100 dB |
| 单位增益带宽积 | 0.7MHz |
| Op Amp Type | :Low Power |
| No. of Amplifiers | :2 |
| Supply Voltage Range | :± 1.5V to ± 16V |
| Amplifier Case Style | :SOIC |
| No. of Pins | :8 |
| 带宽 | :700kHz |
| Operating Temperature Min | :0°C |
| Operating Temperature Max | :70°C |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :358 |
| Device Marking | :LM358AD |
| Gain Bandwidth | :0.7MHz |
| IC Generic Number | :358 |
| IC Temperature Range | :Commercial |
| 输入失调电压最大值 | :7mV |
| Logic Function Number | :358 |
| 工作温度范围 | :0°C to +70°C |
| Operational Amplifier Features | :High-gain, frequency-compensated, Operational |
| Supply Voltage + Nom | :15V |
| Supply Voltage Max | :32V |
| Supply Voltage Min | :3V |
| Weight (kg) | 0.000075 |
| Tariff No. | 85423300 |
| Status | ACTIVE |
| Temp (oC) | 0 to 70 |
| Package | Pins | SOIC (D) | 8 |
| Package QTY | Carrier | 75 | TUBE |
| New Flag | |
| Functional Diagram | fbd_slos068t.gif |
| CMRR | 65 |
| GBW | 0.7 |
| Reference Design | |
| HiRel | |
| Package Group | PDIP SOIC TSSOP VSSOP |
| BW @ Acl | |
| Vs | 32 |
| Iib | |
| 附加功能 | |
| Rail-to-Rail | |
| IIB | 100000 |
| Datasheet | SLOS068T |
| 建筑 | |
| Vn at Flatband | |
| Iq per channel | 0.6 |
| TI Design | |
| Vos (Offset Voltage @ 25C) | 3 |
| Rating | Catalog |
| Offset Drift | 3 |
| Vn at 1kHz | 40 |
| Total Supply Voltage | 3 |
| Acl, min spec gain | |
| Settling Time (01%) | |
| Offset Voltage Drift (+/-) | |
| Io | 20 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
