Texas Instruments

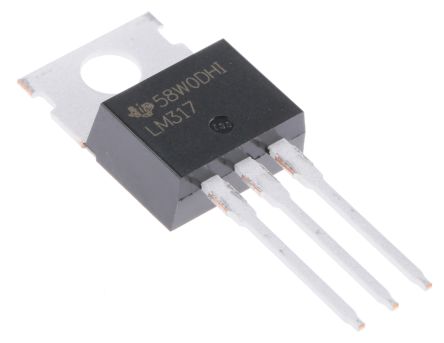

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 封装 | Tube |
| 稳压器拓扑结构 | Positive Adjustable |
| 安装类型 | Through Hole |
| 稳压器数量 | 1 |
| 标准包装 | 50 |
| 供应商设备封装 | TO-220-3 |
| 电压 - 输出 | 1.25 V ~ 37 V |
| 电流 - 输出 | 1.5A (Max) |
| 工作温度 | 0°C ~ 125°C |
| 封装/外壳 | TO-220-3 |
| 电压 - 电压 | 4.2 V ~ 40 V |
| 输出数 | 1 |
| 负载调整率 | 20 mV |
| 线路调整 | 0.01 % / V |
| 输出电流 | 1.5 A |
| PSRR /脉动抑制 - 典型值比 | 57 dB |
| 安装风格 | Through Hole |
| 输出类型 | Adjustable |
| 最大输入电压 | 40 V |
| 输出电压 | 1.25 V to 37 V |
| 最低工作温度 | 0 C |
| 最高工作温度 | + 125 C |
| RoHS | RoHS Compliant |
| 输入电压最小 | 3 V |
| Input Voltage Min | :3V |
| Input Voltage Max | :40V |
| Output Voltage Min | :1.25V |
| Output Voltage Max | :37V |
| Voltage Regulator Case Style | :TO-220 |
| No. of Pins | :3 |
| Operating Temperature Min | :0°C |
| Operating Temperature Max | :125°C |
| MSL | :- |
| SVHC | :No SVHC (16-Dec-2013) |
| No. of Outputs | :1 |
| Primary Input Voltage | :40V |
| Weight (kg) | 0.001 |
| Tariff No. | 85423990 |
| RoHS指令 | Lead free / RoHS Compliant |
| Status | ACTIVE |
| Replaced By | |
| Temp (oC) | 0 to 125 |
| Package | Pins | TO-220 (KCT) | 3 |
| Device Marking | View |
| Package QTY | Carrier | 50 | TUBE |
| New Flag | |
| Functional Diagram | fbd_slvs044w.gif |
| Iout2 | |
| HiRel | |
| 准确性 | 4 |
| Fixed Output Options | |
| 输出电压 | 37 |
| Package Group | DDPAK/TO-263 PFM SOT-223 TO-220 |
| Output Options | Adjustable Output Programmable Output |
| Reference Design | Y |
| 附加功能 | Overcurrent Protection Thermal Shutdown |
| 工作温度范围 | 0 to 125 |
| Output Capacitor Type | Non-Ceramic |
| Iout | 1.5 |
| Datasheet | SLVS044W |
| Vout2 | |
| 噪音 | |
| Vdo | 2000 |
| Rating | Catalog |
| TI Design | Y |
| Iq | 0.05 |
| PSRR @ 100KHz | |
| Vin | 40 |
| Regulated Outputs | 1 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
