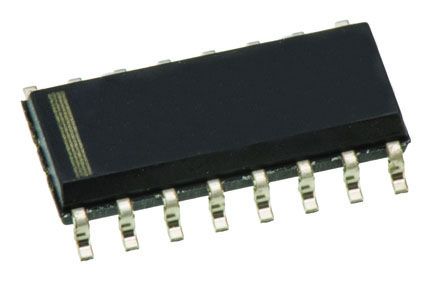

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 16SOIC |
| 每个芯片的通道数 | 4 |
| 输出设备 | Buffer |
| 最小绝缘电压 | 2800 V |
| 最大传播延迟时间 | 95 ns |
| 工作电源电压 | 3.15 to 5.5 V |
| 工作温度 | -40 to 125 °C |
| 标准包装 | Rail / Tube |
| 安装 | Surface Mount |
| 最小绝缘电压 | 2500 |
| Maximum Quiescent Supply Current | 16 |
| 包装宽度 | 7.6(Max) |
| PCB | 16 |
| 最大功率耗散 | 220 |
| 欧盟RoHS指令 | Compliant |
| Maximum Pulse Width Distortion | 2 |
| 输出类型 | Logic |
| 最大下降时间 | 2(Typ) |
| 最低工作温度 | -40 |
| 供应商封装形式 | SOIC |
| 标准包装名称 | SOIC |
| Maximum ESD Protection Voltage | ±1@CDM/±4@HBM/±0.2@MM |
| 最高工作温度 | 125 |
| 最大数据速率 | 150Mbps |
| ESD保护 | Yes |
| 包装长度 | 10.5(Max) |
| 引脚数 | 16 |
| Minimum Common Mode Rejection | 25 |
| 包装高度 | 2.35(Max) |
| 最大工作绝缘电压 | 560Vp |
| 封装 | Rail |
| 机构认证 | CSA/DIN/EN/IEC/UL/VDE |
| 最大工作电源电压 | 5.5 |
| 最大上升时间 | 2(Typ) |
| 铅形状 | Gull-wing |
| 输入 - 1侧1/Side 2 | 2/2 |
| 供应商设备封装 | 16-SOIC |
| 传播延迟 | 34ns |
| 通道数 | 4 |
| 数据传输速率 | 150Mbps |
| 电压 - 电源 | 3.15 V ~ 5.5 V |
| 电压 - 隔离 | 2500Vrms |
| 其他名称 | 296-22967-5 |
| 封装/外壳 | 16-SOIC (0.295", 7.50mm Width) |
| RoHS指令 | Lead free / RoHS Compliant |
| 工厂包装数量 | 40 |
| 产品种类 | Isolator Interface IC |
| 最低工作温度 | - 40 C |
| 系列 | ISO7242M |
| 单位重量 | 0.014829 oz |
| 传播延迟时间 | 22 ns |
| 安装风格 | SMD/SMT |
| 封装/外壳 | SOIC-16 |
| 最高工作温度 | + 125 C |
| RoHS | RoHS Compliant |
| 包装类型 | SOIC |
| 工作电源电压（典型值） | 3.3/5 V |
| No. of Channels | :4 |
| Supply Voltage Min | :3.15V |
| Supply Voltage Max | :5.5V |
| Digital IC Case Style | :SOIC |
| No. of Pins | :16 |
| 电源电流 | :15mA |
| Operating Temperature Min | :-40°C |
| Weight (kg) | 0 |
| Tariff No. | 85411000 |
| Operating Temperature Max | :125°C |
| MSL | :MSL 3 - 168 hours |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :7242 |
| Interface Applications | :Computer Peripheral Interface, Data Acquisition, Industrial Fieldbus, Servo Control Interface |
| 工作温度范围 | :-40°C to +125°C |
| Supply Voltage Range | :3.15V to 5.5V |
| 端接类型 | :SMD |
| Status | ACTIVE |
| Temp (oC) | -40 to 125 |
| Package | Pins | SOIC (DW) | 16 |
| Device Marking | View |
| Package QTY | Carrier | 40 | TUBE |
| TUV EN 60950-1 Reinforced Working | |
| New Flag | |
| Functional Diagram | fbd_slls868q.gif |
| Forward/Reverse Channels | 2/2 |
| CSA 60601-1 Reinforced Working | |
| DIN V VDE V 0884-10 Surge Voltage Rating | 4000 |
| HiRel | |
| Package Group | SOIC |
| CSA 61010-1 Basic Working | |
| DIN V VDE V 0884-10 Working Voltage | 560 |
| Reference Design | |
| TTL/CMOS Input Threshold | CMOS |
| TUV EN 61010-1 Basic Working | |
| VCC | 5 |
| CSA Isolation Rating | 2800 |
| TUV EN 60950-1 Basic Working | |
| UL 1577 Isolation Voltage (Single) | 2500 |
| CSA 60950-1 Reinforced Working | |
| CSA 61010-1 Reinforced Working | |
| Datasheet | SLLS868Q |
| CSA 60950-1 Basic Working | 395 |
| DIN V VDE V 0884-10 Transient Overvoltage Rating | 4000 |
| Rating | Catalog |
| TI Design | |
| Default Output | High |
| TUV Isolation Rating | |
| TUV EN 61010-1 Reinforced Working | |
| 速度 | 150 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
