Texas Instruments

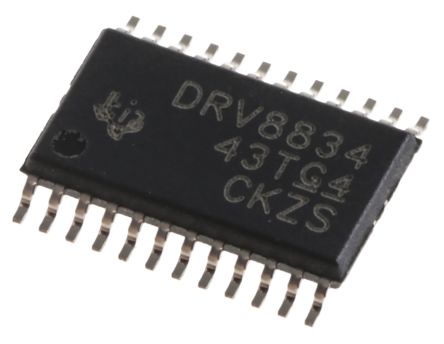

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 供应商封装形式 | HTSSOP EP |
| 标准包装名称 | TSSOP |
| Maximum Operating Current | 4 |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 150 |
| Package Height | 1.05(Max) |
| 安装 | Surface Mount |
| 封装 | Tube |
| 类型 | Stepper Motor Driver |
| 最大工作电源电压 | 10.8 |
| Package Width | 4.5(Max) |
| PCB | 24 |
| Package Length | 7.9(Max) |
| 最低工作温度 | -40 |
| 最低工作电源电压 | 2.5 |
| 引脚数 | 24 |
| 铅形状 | Gull-wing |
| 功能 | Driver - Fully Integrated, Control and Power Stage |
| 汽车类型 - AC，DC | Brushed DC |
| 安装类型 | Surface Mount |
| 应用范围 | General Purpose |
| 电压 - 负载 | 2.5 V ~ 10.8 V |
| 供应商设备封装 | 24-HTSSOP |
| 电流 - 输出 | 1.5A |
| 工作温度 | -40°C ~ 85°C |
| 电机型号 - 步进 | Bipolar |
| 电压 - 电源 | 2.5 V ~ 10.8 V |
| 标准包装 | 60 |
| 封装/外壳 | 24-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| 接口 | Parallel |
| 输出配置 | Full H-Bridge, (2) Dual |
| RoHS指令 | Lead free / RoHS Compliant |
| 应用 | Bipolar Stepping Motor Driver, DC Motor Driver |
| 外形尺寸 | 7.9 x 4.5 x 1.05mm |
| 身高 | 1.05mm |
| 长度 | 7.9mm |
| 最大集电极发射极电压 | 2.5 → 10.8 V |
| 最大IGBT集电极电流 | 1.5A |
| 最大工作电源电压 | 10.8 V |
| 最高工作温度 | +150 °C |
| 最低工作电源电压 | 2.5 V |
| 最低工作温度 | -40 °C |
| 包装类型 | HTSSOP |
| 典型开关频率 | 42.5kHz |
| 宽度 | 4.5mm |
| 工作电源电压 | 2.5 V to 10.8 V |
| 安装风格 | SMD/SMT |
| 产品 | Stepper Motor Controllers / Drivers |
| 产品种类 | Motor / Motion / Ignition Controllers & Drivers |
| 工厂包装数量 | 60 |
| 系列 | DRV8834 |
| 电源电流 | 2.2 A |
| RoHS | RoHS Compliant |
| 工作电流 | 4 mA |
| 工作温度（最大） | 150C |
| 工作温度（最小值） | -40C |
| 工作温度分类 | Automotive |
| 弧度硬化 | No |
| 工作电源电压（最小值） | 2.5 V |
| 电机控制器类型 | Stepper Motor Driver |
| Motor Type | :Stepper |
| No. of Outputs | :2 |
| 输出电流 | :1.5A |
| 输出电压 | :500mV |
| Driver Case Style | :HTSSOP |
| No. of Pins | :24 |
| Supply Voltage Min | :2.5V |
| Supply Voltage Max | :11V |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| MSL | :MSL 3 - 168 hours |
| SVHC | :No SVHC (16-Dec-2013) |
| 工作温度范围 | :-40°C to +85°C |
| Supply Voltage Range | :2.5V to 11V |
| Weight (kg) | 0.0007 |
| Tariff No. | 85423190 |
| Status | ACTIVE |
| Temp (oC) | -40 to 85 |
| Package | Pins | HTSSOP (PWP) | 24 |
| Device Marking | View |
| Package QTY | Carrier | 60 | TUBE |
| New Flag | |
| # of half-bridges | |
| Functional Diagram | fbd_slvsb19d.gif |
| RDS(ON) (HS + LS) | 305 |
| HiRel | |
| Package Group | HTSSOP VQFN |
| Reference Design | |
| 附加功能 | 1/32 Microstepping Higher Microstepping with External Reference |
| RMS Output Current | 1.5 |
| # of Full Bridges | 2 |
| Datasheet | SLVSB19D |
| TI Design | |
| Rating | Catalog |
| 峰值输出电流 | 2.2 |
| Control I/F | Indexer PH/EN |
| Vs | 10.8 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
