texas instruments

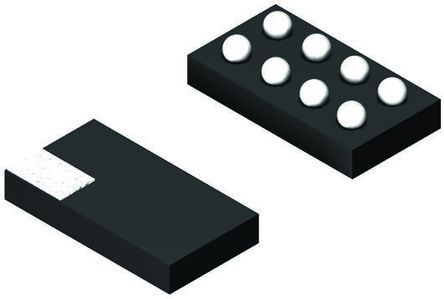

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 8BGA MICROSTAR JUNIOR |
| 类型 | DC Motor Driver |
| 最大工作电流 | 2 mA |
| 工作温度 | -40 to 85 °C |
| 安装 | Surface Mount |
| 标准包装 | Tape & Reel |
| 供应商封装形式 | BGA MICROSTAR JUNIOR |
| 标准包装名称 | BGA |
| 最大工作电流 | 2 |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 85 |
| 筛选等级 | Industrial |
| Package Height | 0.77(Max) |
| 封装 | Tape and Reel |
| 最低工作电源电压 | 2.5 |
| 最大工作电源电压 | 5.5 |
| Package Width | 2.1(Max) |
| 输出电压 | 5.5(Max) |
| PCB | 8 |
| Package Length | 2.1(Max) |
| 最低工作温度 | -40 |
| 引脚数 | 8 |
| 铅形状 | Ball |
| 功能 | * |
| 汽车类型 - AC，DC | * |
| 安装类型 | Surface Mount |
| 应用范围 | Actuator, DC Motor Driver |
| 电压 - 负载 | ±2.15 V ~ 4.55 V |
| 供应商设备封装 | 8-BGA MICROSTAR JUNIOR (2.1x2.1) |
| 电流 - 输出 | 400mA |
| 电机型号 - 步进 | * |
| 电压 - 电源 | 2.5 V ~ 5.5 V |
| 封装/外壳 | 8-VFBGA |
| 接口 | * |
| 输出配置 | * |
| RoHS指令 | Lead free / RoHS Compliant |
| 其他名称 | 296-27770-1 |
| 工作电源电压 | 2.5 V to 5.5 V |
| 安装风格 | SMD/SMT |
| 产品 | Stepper Motor Controllers / Drivers |
| 产品种类 | Motor / Motion / Ignition Controllers & Drivers |
| 工厂包装数量 | 2500 |
| 系列 | DRV8601 |
| 电源电流 | 1.7 mA |
| RoHS | RoHS Compliant |
| Motor Type | :DC |
| No. of Outputs | :1 |
| 输出电流 | :400mA |
| 输出电压 | :4.55V |
| Driver Case Style | :BGA |
| No. of Pins | :8 |
| Supply Voltage Min | :2.5V |
| Supply Voltage Max | :5.5V |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| MSL | :MSL 2 - 1 year |
| SVHC | :No SVHC (16-Dec-2013) |
| Base Number | :8601 |
| Digital IC Case Style | :BGA |
| IC Function | :Driver for DC Motors & Linear Vibrators |
| 工作温度范围 | :-40°C to +85°C |
| Supply Voltage Range | :2.5V to 5.5V |
| Weight (kg) | 0.00027 |
| Tariff No. | 85423990 |
| Status | ACTIVE |
| Temp (oC) | -40 to 85 |
| Package | Pins | BGA MICROSTAR JUNIOR (ZQV) | 8 |
| Device Marking | View |
| Package QTY | Carrier | 2500 | LARGE T&R |
| TI Design | |
| Functional Diagram | |
| High-Level Input Voltage | 1.15 |
| Iq | 1.7 |
| Low-Level Input Voltage | 0.5 |
| Package Group | BGA MICROSTAR JUNIOR SON |
| 输出电压 | 5.5 |
| Datasheet | SLOS629B |
| Startup Time | 0.1 |
| Vs | 5.5 |
| Reference Design | |
| 输入信号 | PWM Analog |
| Shutdown Current | 0.01 |
| Haptic Actuator Type | ERM LRA |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
