Texas Instruments

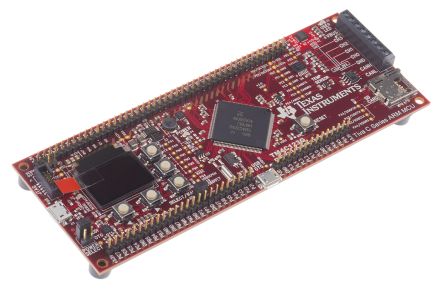

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 主要用途 | Interface, CAN and USB |
| 嵌入式 | Yes, MCU, 32-Bit |
| 用IC /零件 | TM4C123G |
| 次要属性 | LED Status Indicators |
| 标准包装 | 1 |
| 其他名称 | 296-36901 |
| 供物品 | Board, Cables, Software |
| 工作电源电压 | 4.75 V to 5.25 V |
| 核心 | ARM Cortex M4 |
| 产品 | Development Boards |
| 产品种类 | Development Boards & Kits - ARM |
| 数据总线宽度 | 16 bit |
| 外形尺寸 | 6 in x 2.25 in x 0.65 in |
| 描述/功能 | Compact and versatile evaluation platform for Tiva C series |
| 工具用于评估 | TM4C123G |
| 接口类型 | USB |
| 适用于 | TM4C123G |
| RoHS | No |
| Silicon Manufacturer | :Texas Instruments |
| 核心架构 | :ARM |
| Core Sub-Architecture | :Cortex-M4F |
| Silicon Core Number | :TM4C123GH6PGE |
| Silicon Family Name | :Tiva C |
| No. of Bits | :32 bit |
| 套件包含 | :Dev Board TM4C123GH6PGE, ICDI, Cables, Cell Battery, MicroSD Card, USB Flash Drive |
| 产品特点 | :(Not Applicable) |
| SVHC | :No SVHC (16-Dec-2013) |
| Weight (kg) | 0.2 |
| Tariff No. | 84733020 |
| RoHS指令 | Lead free / RoHS Compliant |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
