texas instruments

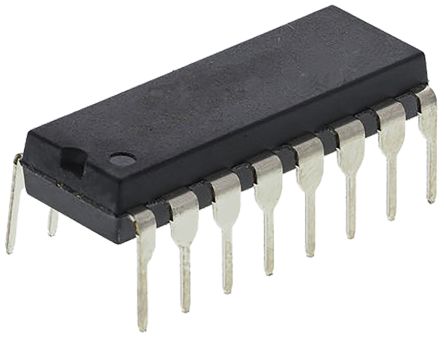

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 16PDIP |
| 逻辑功能 | Counter |
| 逻辑系列 | HC |
| 元素输入 | 1 |
| 每个芯片的元件数 | 2 |
| 方向类型 | Uni-Directional |
| 操作模式 | UP Counter |
| 类型 | Decade |
| 典型工作电源电压 | 2.5|3.3|5 V |
| 工作温度 | -55 to 125 °C |
| 标准包装 | Bulk |
| 标准包装 | Rail / Tube |
| 加工技术 | CMOS |
| 安装 | Through Hole |
| Absolute Propagation Delay Time | 360 |
| Package Width | 6.6(Max) |
| PCB | 16 |
| 筛选等级 | Military |
| 元素输出数 | 4 |
| 典型工作电源电压 | 2.5|3.3|5 |
| 欧盟RoHS指令 | Compliant |
| 最低工作温度 | -55 |
| 供应商封装形式 | PDIP |
| 标准包装名称 | PDIP |
| 最高工作温度 | 125 |
| Package Length | 19.69(Max) |
| 最低工作电源电压 | 2 |
| 引脚数 | 16 |
| Package Height | 5.08(Max) - 0.51(Min) |
| 阶段数 | 4 |
| 封装 | Tube |
| 最大工作电源电压 | 6 |
| 铅形状 | Through Hole |
| 复位 | Asynchronous |
| 方向 | Up |
| 安装类型 | Through Hole |
| 每个元件的位元数 | 4 |
| 逻辑类型 | Counter, Decade |
| 供应商设备封装 | 16-PDIP |
| 计数速率 | 35MHz |
| 时间 | Synchronous |
| 电压 - 电源 | 2 V ~ 6 V |
| 触发器类型 | Positive, Negative |
| 元件数 | 2 |
| 封装/外壳 | 16-DIP (0.300", 7.62mm) |
| RoHS指令 | Lead free / RoHS Compliant |
| 计数器类型 | Decade |
| 外形尺寸 | 19.3 x 6.35 x 4.57mm |
| 身高 | 4.57mm |
| 长度 | 19.3mm |
| 最大工作电源电压 | 6 V |
| 最高工作温度 | +125 °C |
| 最低工作电源电压 | 2 V |
| 最低工作温度 | -55 °C |
| 包装类型 | PDIP |
| 触发类型 | Positive Edge/Negative Edge |
| 宽度 | 6.35mm |
| 工作电源电压 | 2 V to 6 V |
| 工厂包装数量 | 25 |
| 产品种类 | Counter ICs |
| 系列 | CD74HC4518 |
| 单位重量 | 0.033570 oz |
| 计数顺序 | Up |
| 安装风格 | Through Hole |
| 封装/外壳 | PDIP-16 |
| RoHS | RoHS Compliant |
| 时钟频率 | :60MHz |
| Count Maximum | :9 |
| Supply Voltage Min | :2V |
| Supply Voltage Max | :6V |
| Logic Case Style | :DIP |
| No. of Pins | :16 |
| Operating Temperature Min | :-55°C |
| Operating Temperature Max | :125°C |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (20-Jun-2013) |
| Clock Frequency Max | :35MHz |
| Logic Function Number | :744518 |
| Logic IC Base Number | :744518 |
| Logic IC Family | :HC |
| Logic IC Function | :Dual BCD Up-Counter |
| 工作温度范围 | :-55°C to +125°C |
| Supply Voltage Range | :2V to 6V |
| 端接类型 | :Through Hole |
| Weight (kg) | 0.001667 |
| Tariff No. | 85423990 |
| Status | ACTIVE |
| Temp (oC) | -55 to 125 |
| Package | Pins | PDIP (N) | 16 |
| Device Marking | View |
| Package QTY | Carrier | 25 | TUBE |
| Functional Diagram | |
| Technology Family | HC |
| tpd @ Nom Voltage | 51 |
| Bits | 4 |
| 输入电平 | |
| HiRel | |
| Package Group | PDIP |
| Reference Design | |
| VCC | 6 |
| Datasheet | SCHS216D |
| 输出电平 | |
| F @ Nom Voltage | 28 |
| ICC @ Nom Voltage | 0.08 |
| Rating | Catalog |
| Output Drive (IOL/IOH) | 5.2/-5.2 |
| TI Design | |
| 电压 | 3.3 5 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
