Texas Instruments

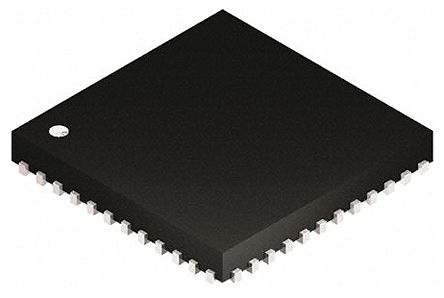

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 安装类型 | Surface Mount |
| 供应商设备封装 | 48-VQFN (7x7) |
| 封装 | Tape & Reel (TR) |
| 应用范围 | Wireless Transmitter Applications |
| 工作温度 | -40°C ~ 110°C |
| 电流 - 电源 | 52mA |
| 电压 - 电源 | 3 V ~ 3.6 V |
| 标准包装 | 250 |
| 封装/外壳 | 48-VFQFN Exposed Pad |
| 其他名称 | 296-35518-1 |
| RoHS指令 | Lead free / RoHS Compliant |
| 类型 | Wireless Power Transmitter Manager |
| 工作温度范围 | - 40 C to + 110 C |
| 系列 | BQ500410A |
| 安装风格 | SMD/SMT |
| 电源电压 - 最大 | 3.6 V |
| 最低工作温度 | - 40 C |
| 封装/外壳 | VQFN-48 |
| 工作频率 | 112 kHz to 205 kHz |
| 电源电流 | 8 mA |
| 电源电压 - 最小 | 3 V |
| 最高工作温度 | + 110 C |
| RoHS | RoHS Compliant |
| IC Function | :Wireless Power Transmitter |
| Brief Features | :- |
| Supply Voltage Min | :3V |
| Supply Voltage Max | :3.6V |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :110°C |
| Digital IC Case Style | :VQFN |
| No. of Pins | :48 |
| MSL | :MSL 3 - 168 hours |
| SVHC | :No SVHC (16-Dec-2013) |
| Weight (kg) | 0.00013 |
| Tariff No. | 85423990 |
| Status | ACTIVE |
| Temp (oC) | -40 to 110 |
| Package | Pins | VQFN (RGZ) | 48 |
| Device Marking | View |
| Package QTY | Carrier | 250 | SMALL T&R |
| 功能 | Transmitter |
| 合规性 | WPC 1.1 |
| TI Design | |
| Functional Diagram | alt_slusb96.gif |
| Rating | Catalog |
| Pout | |
| Vin | |
| Iout | |
| Package Group | VQFN |
| Vout (regulated) | |
| Package Size (mm) | |
| Datasheet | SLUSB96 |
| Vrect (reg) | |
| Reference Design |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
