texas instruments

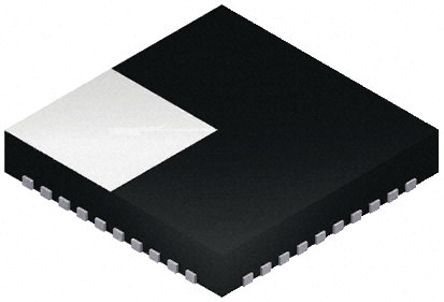

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 40VQFN EP |
| 家庭 | AMC1210 |
| 工作温度 | -40 to 125 °C |
| 标准包装 | Cut Tape |
| 产品种类 | Active Filters |
| RoHS | RoHS Compliant |
| 电源电压 - 最大 | 5 V |
| 电源电压 - 最小 | 2.7 V |
| 最高工作温度 | + 125 C |
| 安装风格 | SMD/SMT |
| 封装/外壳 | VQFN-40 |
| 封装 | Reel |
| 最低工作温度 | - 40 C |
| 工厂包装数量 | 250 |
| 标准包装名称 | QFN |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 125 |
| 包装高度 | 0.95(Max) |
| 安装 | Surface Mount |
| PCB | 40 |
| 包装宽度 | 6.15(Max) |
| 供应商封装形式 | VQFN EP |
| 包装长度 | 6.15(Max) |
| 最低工作温度 | -40 |
| 引脚数 | 40 |
| 铅形状 | No Lead |
| 滤波器类型 | Digital |
| 安装类型 | Surface Mount |
| 供应商设备封装 | 40-VQFN (6x6) |
| 电压 - 电源 | 2.4 V ~ 5.5 V |
| 其他名称 | 296-19667-2 |
| 过滤器数 | 4 |
| RoHS指令 | Lead free / RoHS Compliant |
| 系列 | AMC1210 |
| 单位重量 | 0.003668 oz |
| No. of Filters | :4 |
| 分辨率（位） | :8bit |
| Supply Voltage Min | :4.5V |
| Supply Voltage Max | :5.5V |
| Filter IC Case Style | :QFN |
| No. of Pins | :40 |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :125°C |
| Weight (kg) | 0.002 |
| Tariff No. | 85411000 |
| MSL | :MSL 2 - 1 year |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :1210 |
| Digital IC Case Style | :VQFN |
| 工作温度范围 | :-40°C to +125°C |
| 采样速率 | :40kSPS |
| Supply Voltage Range | :4.5V to 5.5V |
| Supply Voltage Range - Analogue | :2.4V to 5.5V, 4.5V to 5.5V |
| Supply Voltage Range - Digital | :3V to 5.5V |
| 端接类型 | :SMD |
| Status | ACTIVE |
| Temp (oC) | -40 to 125 |
| Package | Pins | VQFN (RHA) | 40 |
| Device Marking | View |
| Package QTY | Carrier | 250 | SMALL T&R |
| New Flag | |
| Functional Diagram | fbd_sbas372d.gif |
| 功耗 | 24.5 |
| ENOB | |
| HiRel | |
| Package Group | VQFN |
| Analog Voltage AV/DD | |
| 输入范围 | |
| Reference Design | |
| 接口 | Parallel Serial SPI |
| # Input Channels | 4 |
| Reference Mode | |
| Datasheet | SBAS372D |
| 建筑 | Special |
| 分辨率 | |
| Digital Supply | |
| 信纳比 | |
| TI Design | |
| Rating | Catalog |
| INL | |
| 信噪比 | |
| Analog Input BW | |
| SFDR |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
