Texas Instruments

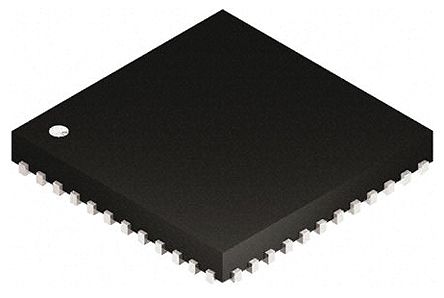

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 标准包装名称 | QFN |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 125 |
| Package Height | 0.95(Max) |
| 安装 | Surface Mount |
| 封装 | Tape and Reel |
| PCB | 48 |
| Package Width | 7.15(Max) |
| 筛选等级 | Extended Industrial |
| 供应商封装形式 | VQFN EP |
| Package Length | 7.15(Max) |
| 最低工作温度 | -40 |
| 引脚数 | 48 |
| 铅形状 | No Lead |
| 位数 | 10 |
| 电压 - 电源，模拟2.8 V，3.3 V | 3 V ~ 3.6 V |
| 电压 - 电源，数字1.65 V 〜 2 V | 3 V ~ 3.6 V |
| 标准包装 | 250 |
| 供应商设备封装 | 48-VQFN (7x7) |
| 通道数 | 1 |
| 其他名称 | 296-29692-2 |
| 封装/外壳 | 48-VFQFN Exposed Pad |
| RoHS指令 | Lead free / RoHS Compliant |
| 工厂包装数量 | 250 |
| 产品 | Analog Front End |
| 产品种类 | Telecom Line Management ICs |
| 系列 | AFE031 |
| 安装风格 | SMD/SMT |
| 电源电压 - 最大 | 3.6 V |
| 接口类型 | 4-Wire |
| 最低工作温度 | - 40 C |
| 封装/外壳 | QFN-48 PowerPAD |
| 电源电流 | 1.2 mA |
| 电源电压 - 最小 | 3 V |
| 最高工作温度 | + 125 C |
| RoHS | RoHS Compliant |
| 删除 | Compliant |
| IC Function | :Analog Front End Device IC |
| Brief Features | :- |
| Supply Voltage Min | :3V |
| Supply Voltage Max | :3.6V |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :150°C |
| No. of Pins | :48 |
| Weight (kg) | 0 |
| Tariff No. | 85423990 |
| Digital IC Case Style | :VQFN |
| MSL | :MSL 3 - 168 hours |
| SVHC | :No SVHC (16-Dec-2013) |
| 工作温度范围 | :-40°C to +125°C |
| Supply Voltage Range | :3V to 3.6V |
| Status | ACTIVE |
| Temp (oC) | -40 to 125 |
| Package | Pins | VQFN (RGZ) | 48 |
| Device Marking | View |
| Package QTY | Carrier | 250 | SMALL T&R |
| New Flag | |
| Functional Diagram | fbd_sbos531d.gif |
| CMRR | |
| GBW | 4.4 |
| Reference Design | Y |
| HiRel | |
| Package Group | VQFN |
| BW @ Acl | |
| Vs | 26 |
| Iib | |
| 附加功能 | |
| Rail-to-Rail | |
| IIB | |
| Datasheet | SBOS531D |
| 建筑 | |
| Vn at Flatband | |
| Iq per channel | 60.3 |
| TI Design | Y |
| Vos (Offset Voltage @ 25C) | |
| Rating | Catalog |
| Offset Drift | |
| Vn at 1kHz | |
| Total Supply Voltage | 7 |
| Acl, min spec gain | |
| Settling Time (01%) | |
| Offset Voltage Drift (+/-) | |
| Io | |
| 压摆率 | 19 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
