Texas Instruments

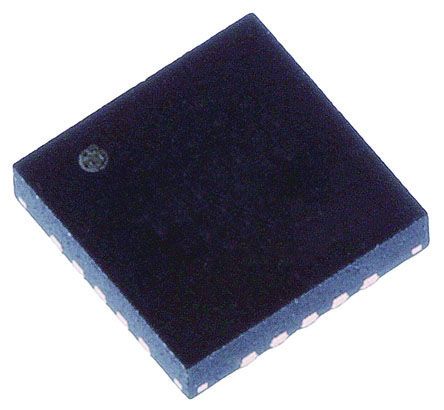

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| ADC的数量 | 1 |
| 典型的单电源电压 | 3 |
| 积分非线性误差 | ±1LSB |
| Package Width | 4 |
| 极性输入电压 | Unipolar |
| 安装 | Surface Mount |
| 输入类型 | Voltage |
| PCB | 20 |
| 筛选等级 | Extended Industrial |
| 数字接口类型 | Serial (SPI) |
| 欧盟RoHS指令 | Compliant |
| 采样速率 | 1Msps |
| 差分输入 | No |
| 电压电源 | Single |
| 输入电压 | 2.5V |
| 最低工作温度 | -40 |
| 供应商封装形式 | WQFN EP |
| 标准包装名称 | QFN |
| 转换器类型 | General Purpose |
| 最高工作温度 | 125 |
| 最大单电源电压 | 5.25 |
| 输入信号类型 | Single-Ended |
| 建筑 | SAR |
| Package Length | 4 |
| 分辨率 | 12bit |
| 引脚数 | 20 |
| 最小单电源电压 | 2.7 |
| Package Height | 0.73 |
| 微分非线性 | ±0.99LSB |
| 封装 | Tape and Reel |
| 参考电压 | Internal|External |
| 铅形状 | No Lead |
| 位数 | 12 |
| 安装类型 | Surface Mount |
| 数据接口 | Serial, SPI™ |
| 采样率（每秒） | 1M |
| 供应商设备封装 | 20-QFN (4x4) |
| 工作温度 | -40°C ~ 125°C |
| 标准包装 | 250 |
| 输入数目和类型 | 8 Single-Ended, Unipolar |
| 转换器数量 | 1 |
| 封装/外壳 | 20-WFQFN Exposed Pad |
| RoHS指令 | Lead free / RoHS Compliant |
| 其他名称 | 296-30382-1 |
| 外形尺寸 | 4.15 x 4.15 x 0.75mm |
| 身高 | 0.75mm |
| 长度 | 4.15mm |
| 最高工作温度 | +125 °C |
| 最低工作温度 | -40 °C |
| 包装类型 | QFN |
| 电源类型 | Single |
| 典型的单电源电压 | 3 V |
| 宽度 | 4.15mm |
| 工作电源电压 | 1.65 V to 5.25 V |
| 转换速率 | 1 MSPs |
| 产品种类 | Analog to Digital Converters - ADC |
| 工厂包装数量 | 250 |
| 系列 | ADS8028 |
| 安装风格 | SMD/SMT |
| 通道数 | 8 Channel |
| 接口类型 | SPI |
| 封装/外壳 | QFN-20 |
| RoHS | RoHS Compliant |
| 工作温度范围 | -40C to 125C |
| Rated Input Volt | 2.5 |
| 元件数 | 1 |
| 工作温度分类 | Automotive |
| 输入极性 | Unipolar |
| Dual Supply Voltage (Typ) | Not Required V |
| 电源要求 | Single |
| Dual Supply Voltage (Min) | Not Required V |
| 弧度硬化 | No |
| 单电源电压（最小值） | 2.7 V |
| 单电源电压（最大值） | 5.25 V |
| 单电源电压（典型值） | 3 V |
| Dual Supply Voltage (Max) | Not Required V |
| Differential Linearity Error | �0.99LSB |
| 分辨率（位） | :12bit |
| 电源电流 | :7mA |
| Digital IC Case Style | :QFN |
| No. of Pins | :20 |
| Input Channel Type | :Single Ended |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :125°C |
| MSL | :MSL 2 - 1 year |
| SVHC | :No SVHC (16-Dec-2013) |
| Base Number | :8028 |
| 工作温度范围 | :-40°C to +125°C |
| Supply Voltage Range | :2.7V to 5.25V |
| Supply Voltage Range - Analogue | :2.7V to 5.25V |
| Supply Voltage Range - Digital | :1.65V to 5.25V |
| Weight (kg) | 0.000037 |
| Tariff No. | 85423190 |
| Status | ACTIVE |
| Temp (oC) | -40 to 125 |
| Package | Pins | QFN (RTJ) | 20 |
| Device Marking | View |
| Package QTY | Carrier | 250 | SMALL T&R |
| New Flag | |
| Functional Diagram | fbd_sbas549b.gif |
| 功耗 | 17 |
| ENOB | |
| HiRel | |
| Package Group | QFN |
| Analog Voltage AV/DD | 5.25 |
| 输入范围 | |
| Reference Design | |
| 接口 | Serial SPI |
| # Input Channels | 8 |
| Reference Mode | Ext Int |
| Datasheet | SBAS549B |
| Digital Supply | 5.25 |
| 信纳比 | 71 |
| TI Design | |
| Rating | Catalog |
| INL | 1 |
| 信噪比 | 72 |
| Analog Input BW | |
| SFDR |
