texas instruments

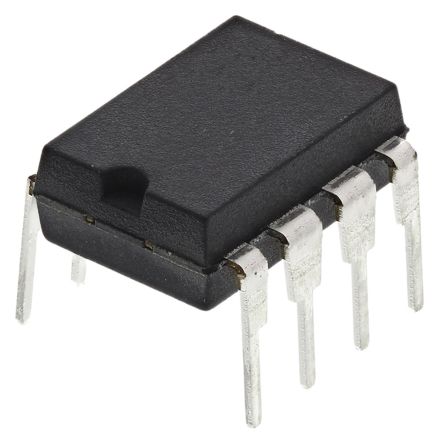

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 8PDIP |
| 分辨率 | 12 Bit |
| 采样速率 | 200 ksps |
| 模拟量输入数 | 1 |
| 建筑 | SAR |
| 数字接口类型 | Serial (3-Wire, SPI) |
| 输入类型 | Voltage |
| 极性输入电压 | Unipolar |
| 采样和保持 | Yes |
| 标准包装 | Rail / Tube |
| ADC的数量 | 1 |
| 典型的单电源电压 | 5 |
| 积分非线性误差 | ±2LSB |
| 包装宽度 | 6.6(Max) |
| 安装 | Through Hole |
| PCB | 8 |
| 欧盟RoHS指令 | Compliant |
| 差分输入 | Yes |
| 电压电源 | Single |
| 输入电压 | 5V |
| 最低工作温度 | -40 |
| 供应商封装形式 | PDIP |
| 标准包装名称 | PDIP |
| 转换器类型 | General Purpose |
| 最高工作温度 | 85 |
| 最大单电源电压 | 5.25 |
| 输入信号类型 | Pseudo-Differential |
| 包装长度 | 10.16(Max) |
| 引脚数 | 8 |
| 最小单电源电压 | 4.5 |
| 包装高度 | 5.08(Max) - 0.51(Min) |
| 微分非线性 | ±2LSB |
| 封装 | Tube |
| 参考电压 | External |
| 铅形状 | Through Hole |
| 位数 | 12 |
| 安装类型 | Through Hole |
| 数据接口 | Serial |
| 采样率（每秒） | 200k |
| 供应商设备封装 | 8-PDIP |
| 工作温度 | -40°C ~ 85°C |
| 输入数目和类型 | 1 Differential, Unipolar |
| 转换器数量 | 1 |
| 封装/外壳 | 8-DIP (0.300", 7.62mm) |
| RoHS指令 | Lead free / RoHS Compliant |
| 外形尺寸 | 9.81 x 6.35 x 4.57mm |
| 身高 | 4.57mm |
| 长度 | 9.81mm |
| 最高工作温度 | +85 °C |
| 最低工作温度 | -40 °C |
| 包装类型 | PDIP |
| 典型的单电源电压 | 5 V |
| 宽度 | 6.35mm |
| 工作电源电压 | 4.5 V to 5.25 V |
| 转换速率 | 200 KSPs |
| 产品种类 | Analog to Digital Converters - ADC |
| 安装风格 | Through Hole |
| 工厂包装数量 | 50 |
| 系列 | ADS7816 |
| 单位重量 | 0.018455 oz |
| 通道数 | 1 Channel |
| 接口类型 | Serial (3-Wire, SPI) |
| 封装/外壳 | PDIP-8 |
| 信噪比 | No |
| RoHS | RoHS Compliant |
| 工作温度范围 | -40C to 85C |
| Rated Input Volt | 5 |
| 元件数 | 1 |
| 采样速率 | 200 KSPS |
| 工作温度分类 | Industrial |
| 输入极性 | Unipolar |
| Dual Supply Voltage (Typ) | Not Required V |
| 电源要求 | Single |
| Dual Supply Voltage (Min) | Not Required V |
| 弧度硬化 | No |
| 单电源电压（最小值） | 4.5 V |
| 单电源电压（最大值） | 5.25 V |
| 单电源电压（典型值） | 5 V |
| Dual Supply Voltage (Max) | Not Required V |
| Differential Linearity Error | �2LSB |
| 分辨率（位） | :12bit |
| Supply Voltage Type | :Single |
| Supply Voltage Min | :4.5V |
| Supply Voltage Max | :5.25V |
| 电源电流 | :380µA |
| Digital IC Case Style | :DIP |
| No. of Pins | :8 |
| Input Channel Type | :Differential |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| MSL | :- |
| SVHC | :No SVHC (16-Dec-2013) |
| A/D / D/A Features | :CMOS, Sample and Hold, Serial O/P, Successive Approximation |
| Base Number | :7816 |
| Conversion Time | :5µs |
| IC Case Style | :DIP |
| IC Generic Number | :7816 |
| 线性误差 | :0.5% |
| Linearity Error ADC / DAC + | :0.5LSB |
| Linearity Error ADC / DAC - | :0.5LSB |
| Logic Function Number | :7816 |
| No. of Bits | :12 bit |
| No. of Channels | :1 |
| 工作温度范围 | :-40°C to +85°C |
| Power Dissipation Ptot Max | :2.5mW |
| Supply Voltage Range | :4.5V to 5.25V |
| Supply Voltage Range - Analogue | :4.5V to 5.25V |
| 端接类型 | :Through Hole |
| Weight (kg) | 0.000833 |
| Tariff No. | 85423990 |
| Sampling speed | 200ksps |
| 案例 | DIP8 |
| Integrated circuits features | micropower |
| Converter resolution | 12bit |
| Multiplicity | 1 |
| Integrated circuit type | A/D converter |
| Gross weight | 1.3 g |
| Number of channels | 1 |
| 电源电压 | 4.5...5.25V DC |
| 接口 | Serial |
| Collective package [pcs] | 50 |
| Relative accuracy | 0.5LSB |
| spg | 50 |
| Status | ACTIVE |
| Temp (oC) | -40 to 85 |
| Package | Pins | PDIP (P) | 8 |
| Device Marking | View |
| Package QTY | Carrier | 50 | TUBE |
| New Flag | |
| Functional Diagram | fbd_sbas061.gif |
| 功耗 | 1.9 |
| ENOB | |
| HiRel | |
| Package Group | PDIP SOIC VSSOP |
| Analog Voltage AV/DD | 5.25 |
| 输入范围 | |
| Reference Design | |
| # Input Channels | 1 |
| Reference Mode | Ext |
| Datasheet | SBAS061 |
| Digital Supply | 5.25 |
| 信纳比 | 72 |
| TI Design | |
| Rating | Catalog |
| INL | 2 |
| Analog Input BW | |
| SFDR |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
