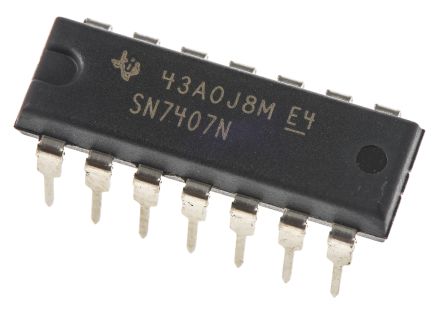

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 14PDIP |
| 每个芯片的输出端数量 | 6 |
| 输出类型 | Open Collector |
| 输入信号类型 | Single-Ended |
| 逻辑功能 | Buffer/Driver |
| 逻辑系列 | TTL |
| 最大传播延迟时间@最大CL | 26@5V ns |
| 极性 | Non-Inverting |
| 标准包装 | Rail / Tube |
| 输出 - 电流高，低 | -, 40mA |
| 安装类型 | Through Hole |
| 每个元件的位元数 | 1 |
| 逻辑类型 | Buffer/Line Driver, Non-Inverting |
| 供应商设备封装 | 14-PDIP |
| 封装 | Tube |
| 工作温度 | 0°C ~ 70°C |
| 电压 - 电源 | 4.75 V ~ 5.25 V |
| 元件数 | 6 |
| 封装/外壳 | 14-DIP (0.300", 7.62mm) |
| RoHS指令 | Lead free / RoHS Compliant |
| 外形尺寸 | 19.3 x 6.35 x 4.57mm |
| 身高 | 4.57mm |
| 输入类型 | Single Ended |
| 长度 | 19.3mm |
| 最大高电平输出电流 | -0.25mA |
| 最大低电平输出电流 | 40mA |
| 最大工作电源电压 | 5.25 V |
| 最高工作温度 | +70 °C |
| 最低工作电源电压 | 4.75 V |
| 最低工作温度 | 0 °C |
| 每个芯片的通道数 | 6 |
| 包装类型 | PDIP |
| 引脚数 | 14 |
| 传输延时测试条件 | 50pF |
| 宽度 | 6.35mm |
| 技术 | Bipolar |
| 逻辑功能 | Buffer/Driver |
| 安装 | Through Hole |
| 通道数 | 6 |
| 工作温度范围 | 0C to 70C |
| 传播延迟时间 | 30 ns |
| 元件数 | 6 |
| 高电平输出电流 | -0.25 mA |
| 工作温度分类 | Commercial |
| 输入数 | 6 |
| 输出数 | 6 |
| 低电平输出电流 | 40 mA |
| 弧度硬化 | No |
| 工作电源电压（典型值） | 5 V |
| 工作电源电压（最小值） | 4.75 V |
| 工作电源电压（最大值） | 5.25 V |
| 删除 | Compliant |
| Logic Device Type | :Buffer, Non Inverting |
| Supply Voltage Min | :4.75V |
| Supply Voltage Max | :5.25V |
| Logic Case Style | :DIP |
| No. of Pins | :14 |
| Operating Temperature Min | :0°C |
| Operating Temperature Max | :70°C |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :7407 |
| Device Marking | :7407 |
| IC Generic Number | :7407 |
| IC Temperature Range | :Commercial |
| Logic Function Number | :7407 |
| Logic IC Base Number | :7407 |
| Logic IC Family | :7400 |
| Logic IC Function | :Hex Buffer / Line Driver |
| No. of Gates | :6 |
| No. of Inputs | :1 |
| 工作温度范围 | :0°C to +70°C |
| 电源电压 | :5V |
| Supply Voltage Range | :4.75V to 5.25V |
| 端接类型 | :Through Hole |
| Weight (kg) | 0.016667 |
| Tariff No. | 85423990 |
| Family Type | :7400 |
| Status | ACTIVE |
| Temp (oC) | 0 to 70 |
| Package | Pins | PDIP (N) | 14 |
| Package QTY | Carrier | 25 | TUBE |
| Functional Diagram | |
| Technology Family | TTL |
| tpd @ Nom Voltage | 30 |
| Bits | 6 |
| HiRel | |
| Package Group | PDIP SO SOIC |
| Reference Design | |
| VCC | 5.25 |
| Datasheet | SDLS032G |
| F @ Nom Voltage | 75 |
| ICC @ Nom Voltage | 0.041 |
| Schmitt Trigger | No |
| Rating | Catalog |
| Output Drive (IOL/IOH) | - /40 |
| TI Design | |
| 电压 | 5 |
| RESOURCE TYPE | LINK |
|---|---|
