texas instruments

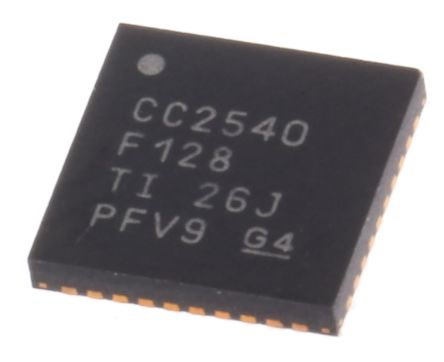

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 40VQFN EP |
| 功率等级 | Class II |
| 最大数据速率 | 1 Mbps |
| 最大待机电流 | 0.0000004(Typ) A |
| 最大电源电流 | 0.0004 A |
| 工作电源电压 | 2 to 3.6 V |
| 湿度敏感度等级 | 3 |
| 标准包装 | Tape & Reel |
| 产品种类 | RF System on a Chip - SoC |
| RoHS | RoHS Compliant |
| 类型 | Bluetooth |
| 核心 | 8051 |
| 输出功率 | 8 dBm |
| 灵敏度 | - 93 dBm |
| 接收供电电流 | 22.1 mA |
| 传输供电电流 | 31.6 mA |
| 程序存储器大小 | 128 KB |
| 工作温度范围 | - 40 C to + 85 C |
| 封装/外壳 | VQFN-40 |
| A / D通道 | 3 |
| 数据总线宽度 | 8 bit |
| 数据RAM大小 | 8 KB |
| 频率 | 2.4 GHz |
| 长度 | 6 mm |
| 安装风格 | SMD/SMT |
| 计时器数 | 21 |
| 片上ADC | Yes |
| 封装 | Reel |
| 信息处理器系列 | CC2540 |
| 系列 | CC2540 |
| 工厂包装数量 | 250 |
| 宽度 | 6 mm |
| 安装 | Surface Mount |
| Package Width | 6.15(Max) |
| 筛选等级 | Industrial |
| PCB | 40 |
| 最高工作温度 | 85 |
| 最大待机电流 | 0.0000004(Typ) |
| Minimum Operating Frequency | 2402 |
| 欧盟RoHS指令 | Compliant |
| 最低工作温度 | -40 |
| 最大工作频率 | 2480 |
| 供应商封装形式 | VQFN EP |
| 标准包装名称 | QFN |
| 最大数据速率 | 1 |
| Package Length | 6.15(Max) |
| 最低工作电源电压 | 2 |
| 引脚数 | 40 |
| 最大电源电流 | 0.0004 |
| Package Height | 0.95(Max) |
| 最大工作电源电压 | 3.6 |
| 铅形状 | No Lead |
| 电流 - 传输 | 31.6mA |
| 功率 - 输出 | 8dBm |
| 电流 - 接收 | 22.1mA |
| 天线连接器 | PCB, Surface Mount |
| 数据接口 | PCB, Surface Mount |
| 数据传输率 - 最大 | 1Mbps |
| 应用范围 | General Purpose |
| 工作温度 | -40°C ~ 85°C |
| 存储容量 | 128kB Flash, 8kB RAM |
| 电压 - 电源 | 2 V ~ 3.6 V |
| 调制或协议 | Bluetooth Low Energy, v4.0 |
| 其他名称 | 296-27921-2 |
| 封装/外壳 | 40-VFQFN Exposed Pad |
| RoHS指令 | Lead free / RoHS Compliant |
| 应用 | Bluetooth |
| 外形尺寸 | 6 x 6 x 0.9mm |
| 身高 | 0.9mm |
| 最大工作电源电压 | 3.6 V |
| 最高工作温度 | +85 °C |
| 最低工作电源电压 | 2 V |
| 最低工作温度 | -40 °C |
| 安装类型 | Surface Mount |
| 包装类型 | VQFN |
| 处理单位 | Microcontroller |
| 技术 | CMOS |
| 删除 | Compliant |
| 数据传输速率 | 1 Mbps |
| 工作温度（最大） | 85C |
| 工作温度（最小值） | -40C |
| 工作温度分类 | Industrial |
| 弧度硬化 | No |
| 工作电源电压（最小值） | 2 V |
| 工作电源电压（最大值） | 3.6 V |
| Frequency Min | :2.402GHz |
| Frequency Max | :2.48GHz |
| 调制类型 | :GFSK |
| Receiving Current | :22.1mA |
| RF IC Case Style | :QFN |
| No. of Pins | :40 |
| Supply Voltage Min | :2V |
| Supply Voltage Max | :3.6V |
| Transmitting Current | :31.6mA |
| Output Power (dBm) | :24dBm |
| Sensitivity dBm | :-93dBm |
| RF Transceiver Applications | :2.4GHz Bluetooth Low Energy Systems, Leisure Equipment, Mobile Phone Accessories, Sports |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| MSL | :MSL 3 - 168 hours |
| SVHC | :No SVHC (16-Dec-2013) |
| 频率范围 | :2.402GHz to 2.48GHz |
| Weight (kg) | 0.00022 |
| Tariff No. | 85423190 |
| Status | ACTIVE |
| Temp (oC) | -40 to 85 |
| Package | Pins | VQFN (RHA) | 40 |
| Device Marking | View |
| Package QTY | Carrier | 250 | SMALL T&R |
| Datasheet | SWRS084F |
| Standards Based Communication Protocol | Yes |
| New Flag | |
| Functional Diagram | fbd_swrs084f.gif |
| Featured | Yes |
| Required Throughput | <100 Kbs |
| 设备类型 | Wireless MCU |
| Number of Nodes | <10 |
| TI Design | Y |
| Key Applications | Bluetooth Smart (Bluetooth low energy) |
| How product connects to Internet | Use direct link to phone/tablet/pc Use custom gateway or not required |
| Reference Design | Y |
| Distance between 2 nodes or between node and gateway | Personal (~10m) |
| Operating System Used in Product | Android Linux RTOS No OS |
| Network Topology | Star or Point to Point |
| Type of Battery | Coin Cell AAA Battery AA Battery Rechargable (Li-ION) |
