texas instruments

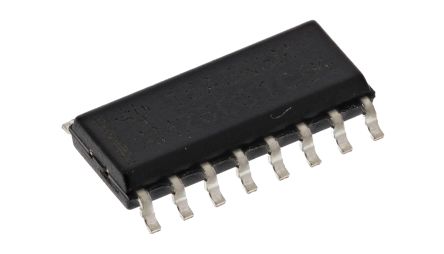

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 16SOIC |
| 数据传输拓扑 | Multidrop |
| 接口标准 | EIA/TIA-422-B|V.11 |
| 数据传输速率 | 10 Mbps |
| 功能 | Line Transmitter |
| 变送器数 | 4 |
| 发射信号类型 | Differential |
| 变送器通讯方式 | RS-422 |
| 驱动方式 | 3-State |
| 典型的单电源电压 | 5 V |
| 标准包装 | Bulk |
| 标准包装 | Rail / Tube |
| 典型的单电源电压 | 5 |
| 安装 | Surface Mount |
| Package Width | 4(Max) |
| PCB | 16 |
| 筛选等级 | Commercial |
| 欧盟RoHS指令 | Compliant |
| 电源类型 | Single |
| 最低工作温度 | 0 |
| 供应商封装形式 | SOIC |
| 标准包装名称 | SOIC |
| 最高工作温度 | 70 |
| ESD保护 | No |
| Maximum Single Supply Voltage | 5.5 |
| Package Length | 10(Max) |
| 引脚数 | 16 |
| Minimum Single Supply Voltage | 4.5 |
| Package Height | 1.5(Max) |
| 封装 | Tube |
| 铅形状 | Gull-wing |
| 协议 | RS422 |
| 安装类型 | Surface Mount |
| 的驱动器/接收器数 | 4/0 |
| 供应商设备封装 | 16-SOIC N |
| 工作温度 | 0°C ~ 70°C |
| 电压 - 电源 | 4.5 V ~ 5.5 V |
| 类型 | Driver |
| 其他名称 | 296-6781-5 |
| 封装/外壳 | 16-SOIC (0.154", 3.90mm Width) |
| RoHS指令 | Lead free / RoHS Compliant |
| 外形尺寸 | 9.9 x 3.91 x 1.58mm |
| 身高 | 1.58mm |
| 长度 | 9.9mm |
| 最高工作温度 | +70 °C |
| 最低工作温度 | 0 °C |
| 每个线路驱动器数量 | 1 |
| 包装类型 | SOIC |
| 宽度 | 3.91mm |
| 工作电源电压 | 9 V |
| 安装风格 | SMD/SMT |
| 产品种类 | RS-422 Interface IC |
| 工作温度范围 | 0 C to + 70 C |
| 系列 | AM26C31 |
| 单位重量 | 0.004998 oz |
| 驱动器数 | 4 |
| 接收器数 | 4 |
| 最大功率耗散 | 4.5 V to 5.5 V |
| RoHS | RoHS Compliant |
| 关机 | No |
| 封装/外壳 | SOIC-16 |
| 工厂包装数量 | 40 |
| 电源电流 | 100 uA |
| 传播延迟时间ns | 7 ns |
| 接口电路标准1 | EIA/TIA-422-B/V.11 |
| 工作温度范围 | 0C to 70C |
| 工作温度分类 | Commercial |
| Dual Supply Voltage (Typ) | Not Required V |
| 电源要求 | Single |
| Dual Supply Voltage (Min) | Not Required V |
| 弧度硬化 | No |
| 单电源电压（最小值） | 4.5 V |
| 单电源电压（最大值） | 5.5 V |
| 单电源电压（典型值） | 5 V |
| Dual Supply Voltage (Max) | Not Required V |
| 接收机信号类型 | Not Required |
| 收发器数量 | Not Required |
| 删除 | Compliant |
| 设备类型 | :Line |
| IC Interface Type | :RS422 |
| No. of Drivers | :4 |
| Supply Voltage Min | :4.5V |
| Supply Voltage Max | :5.5V |
| Driver Case Style | :SOIC |
| No. of Pins | :16 |
| Operating Temperature Min | :0°C |
| Operating Temperature Max | :70°C |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (16-Dec-2013) |
| Base Number | :26 |
| IC Generic Number | :26C31 |
| IC Temperature Range | :Commercial |
| Line / Bus Driver / Receiver / Transceiver Type | :RS-422 |
| Logic Function Number | :26C31 |
| Output Voltage Max | :3.4V |
| 传播延迟 | :12ns |
| Supply Voltage Range | :4.5V to 5.5V |
| 端接类型 | :SMD |
| Voltage Vcc | :5V |
| Weight (kg) | 0.001 |
| Tariff No. | 85423190 |
| 案例 | SO16 |
| Integrated circuit type | driver |
| Gross weight | 0.5 g |
| Operating temperature | 0...70°C |
| 输出电压 | 3.4V |
| Number of channels | 4 |
| 电源电压 | 4.5...5.5V DC |
| Multiplicity | 1 |
| 接口 | RS422 |
| Kind of integrated circuit | line - RS232 |
| Collective package [pcs] | 40 |
| spg | 40 |
| Status | ACTIVE |
| Replaced By | |
| Temp (oC) | 0 to 70 |
| Package | Pins | SOIC (D) | 16 |
| Device Marking | View |
| Package QTY | Carrier | 40 | TUBE |
| Functional Diagram | |
| # of TX/RX | 4 TX / 0 RX |
| 隔离 | |
| Receivers Per Package | 0 |
| HiRel | Y |
| Package Group | PDIP SO SOIC SSOP TSSOP |
| Signaling Rate | |
| 脚印 | AM26LS31 |
| RS-485 | |
| Receiver tpd | |
| ICC | 3 |
| Drivers Per Package | 4 |
| Datasheet | SLLS103N |
| ESD | 2 |
| RS-422 | RS-422 |
| RS-423 | |
| Rating | Military |
| Receiver (Vth) | |
| Supply Voltage(s) |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
