BP SOLAR

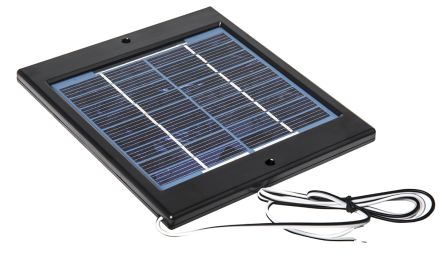

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 额定功率 | :1.2W |
| Power Voltage Max | :7.5V |
| Current at P Max | :150mA |
| 开路电压 | :10.3V |
| Short Circuit Current | :160mA |
| 长度 | :127mm |
| 宽度 | :127mm |
| 身高 | :3mm |
| DC Power | :1.2W |
| 外部深度 | :10mm |
| External Length / Height | :161mm |
| 外宽 | :139mm |
| 引线长度 | :750mm |
| Nom Voltage | :6V |
| Output Current Max | :0.15A |
| Output Voltage Max | :8.4V |
| Weight (kg) | 0.34 |
| Tariff No. | 85414090 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
