Block

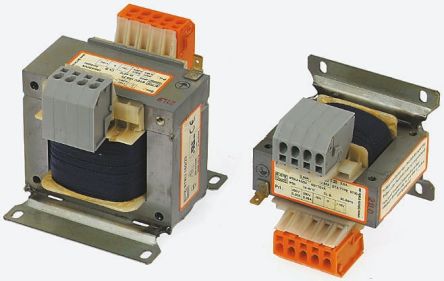

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 深度 | 180.5mm |
| 外形尺寸 | 192 x 161 x 180.5mm |
| 长度 | 192mm |
| 最高温度 | +40°C |
| 输出数 | 2 |
| 额定功率 | 1.6kVA |
| 初级电压额定值 | 230 V, 400 V |
| 次级电压额定值 | 115 V, 230 V |
| 重量 | 20.8kg |
| 宽度 | 161mm |
| Primary Voltages | :1 x 400V |
| Secondary Voltages | :2 x 115V |
| 额定电流 | :6.96A |
| 插头类型 | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| AC Power | :1600VA |
| Approval Bodies | :EN, IEC, UL, VDE |
| 外部深度 | :161mm |
| External Length / Height | :180.5mm |
| 外宽 | :192mm |
| Fixing Centres LxW | :156 x 133 |
| 身高 | :180.5mm |
| 输入电压 | :400V |
| Insulation Class | :VDE - B, UL - 130 |
| 安装类型 | :DIN Rail |
| Multiple Output Voltages | :2 x 115V |
| Operating Temperature Max | :40°C |
| 输出电压 | :115V |
| 防护类型 | :IP 000 |
| Regulation | :94% |
| Seccondary No Load Voltage | :1.01V |
| Secondary Power | :1.6kVA |
| Supply Frequency Max | :60Hz |
| Supply Frequency Min | :50Hz |
| 终端类型 | :Cage Clamp |
| Test Voltage | :4500VAC |
| 变压器类型 | :Isolation |
| 类型 | :Open |
| Weight (kg) | 20.8 |
| Tariff No. | 85043180 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
