BLOCK

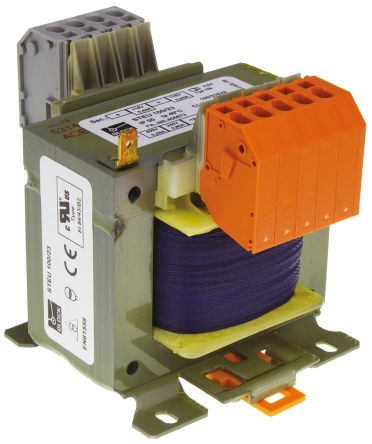

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Primary Voltages | :230V, 400V |
| Secondary Voltages | :2 x 115V |
| 额定电流 | :870mA |
| 额定功率 | :100VA |
| 插头类型 | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| AC Power | :100VA |
| Approval Bodies | :EN, IEC, UL, VDE |
| 外部深度 | :85mm |
| External Length / Height | :88mm |
| 外宽 | :84mm |
| Fixing Centres LxW | :64 x 64 |
| 输入电压 | :400V |
| 安装类型 | :DIN Rail |
| Multiple Output Voltages | :2 x 115V |
| Operating Temperature Max | :40°C |
| Output 2 Voltage Max | :115V |
| 输出电压 | :115V |
| Regulation | :86% |
| Secondary Power | :50VA |
| Supply Frequency Max | :60Hz |
| Supply Frequency Min | :50Hz |
| 终端类型 | :Cage Clamp |
| 变压器类型 | :Isolation |
| 重量 | :2.1kg |
| Weight (kg) | 2.1 |
| Tariff No. | 85043180 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
