Binder

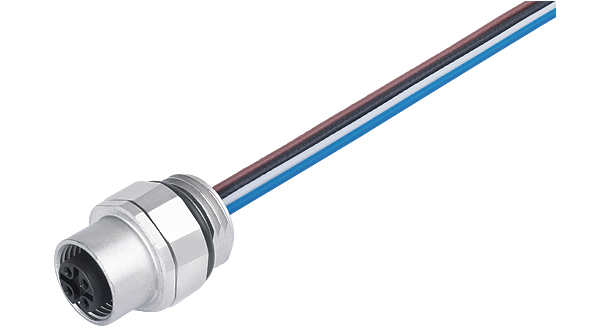

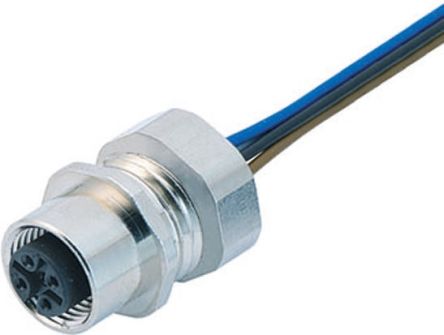

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 附件类型 | Socket |
| 电缆长度 | 2m |
| 连接性别 | Female |
| 连接类型 | M12 |
| 适用于 | M12 Sensor Connectors |
| Description | Panel-mount sockets with 0.2 m strands for front assembly |
| 额定电流 | 1 A |
| 额定电压 | 30 |
| 外壳材料 | Metal |
| Temperature range | -25...+85 °C |
| 连接方式 | 0.14 mm² |
| Poles | 12 |
| Locking type | Thread locking M12 x 1 |
| 系列 | 713 |
| 拧紧固定螺丝 | PG 9 |
| Contact material | CuSn(Zn)+Au |
| Protection rating | IP 68 |
| Termination type | Stranded Wires, Prepared |
| Gender of contacts | Female |
| 附件类型 | 插座 |
| 连接性别 | 母 |
| 使用于 | M12 Sensor Connectors |
| 连接类型 | M12 |
| 电缆长度 | 200mm |
