E-Switch

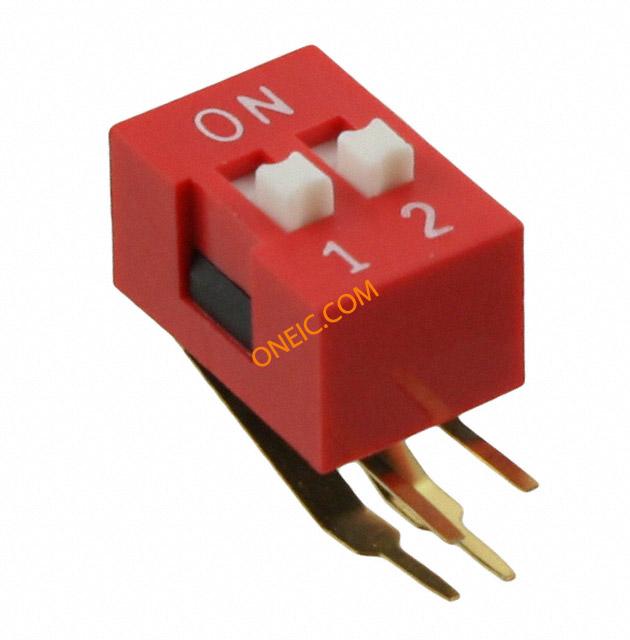

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 水洗 | Yes |
| 执行器类型 | Standard |
| 安装类型 | Through Hole |
| 位置数 | 2 |
| 电路 | SPST |
| 标准包装 | 70 |
| 触点额定电压 | 0.025A @ 24VDC |
| 定位 | Side Actuated |
| 其他名称 | EG4507 |
| 触动器电平 | Raised |
| 系列 | KAS |
| 接触电阻 | Initial:50 m? typical @ 2-4V DC @ 100mA, After Life: 100m? typical @ 2-4 DC @ 100mA |
| 操作力 | 1000 gf max. |
| 联系方式 | Phosphor Bronze with gold plate over nickel plate |
| 评分 | 25 mA @ 24 VDC |
| 行程 | 2.0 mm typical |
| 绝缘强度 | 500V RMS min. @ sea level between adjacent terminals |
| Tape | Mylar |
| 执行器 | Extended Actuator Top Side OFF |
| 机械寿命 | 2,000 make-and-break cycles, each circuit |
| 类型 | Slide |
| 振动 | To MIL-STD-202F, Method 201 A |
| MainCategory | Switches |
| Soldering Recommendations | Wave: 500 F (260 C) for 5s max; Hand: 30W soldering iron @ 608 F (320 C) for 2s typical. Keep all switches in the OFF position during soldering and cleaning process. |
| 端子 | Phosphor Bronze with gold plate over nickel plate |
| 温度范围 | Operating/Storage: -40° C to 85° C |
| Housing and Actuator | Glass filled polyester (PBT) UL94-V0 |
| SubCategory | DIP Switch |
| 冲击 | To MIL-STD-202F, Method 213B, Condition A |
| 联系配置 | SPST |
| 端子 | PC Pins (Right Angle) |
| 密封 | Top Tape Sealed |
| 绝缘电阻 | 100 M? Min. @ 500V DC |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
